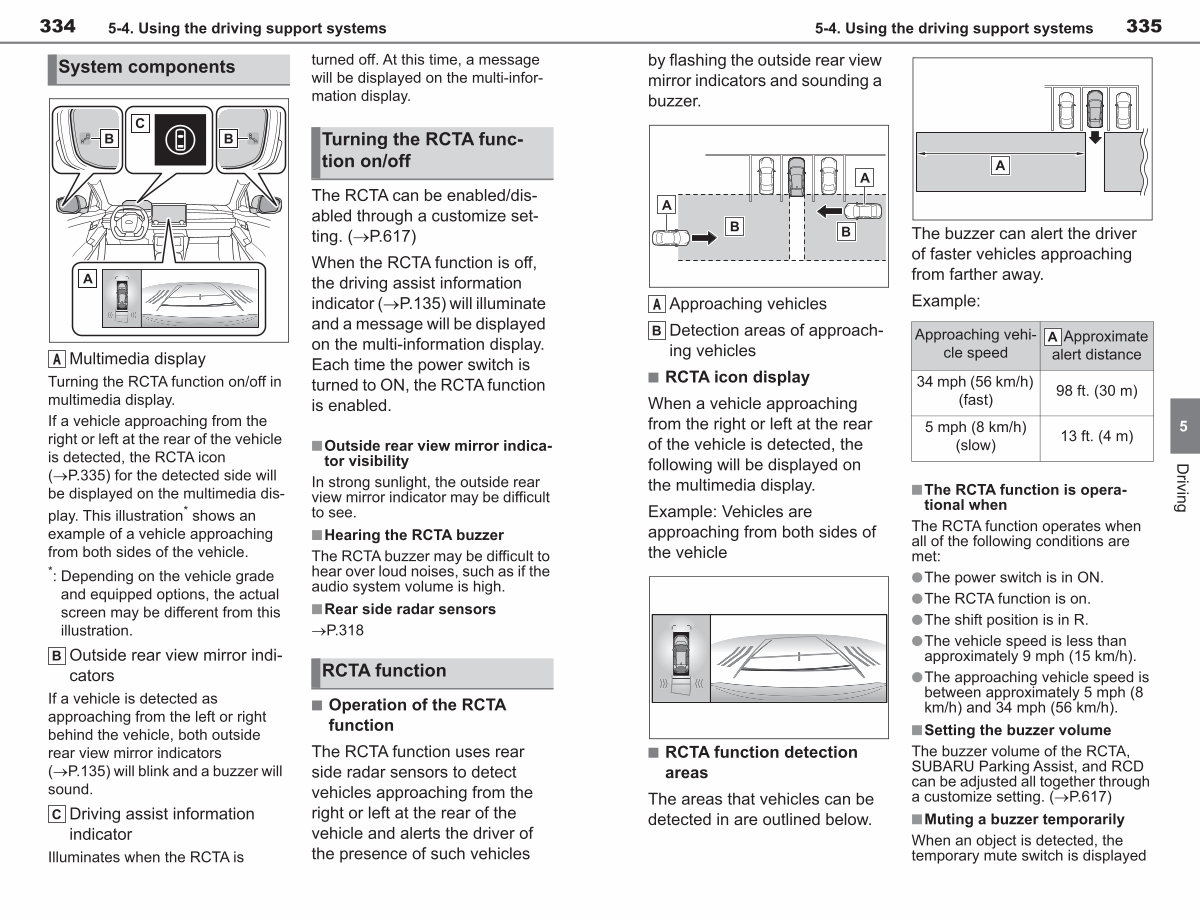

334 5-4. Using the driving support systems
System components turned off. At this time, a message will be displayed on the multi-information display.
Turning the RCTA function on / off
A
Multimedia display
Turning the RCTA function on / off in multimedia display. If a vehicle approaching from the right or left at the rear of the vehicle is detected, the RCTA icon( �P. 335) for the detected side will be displayed on the multimedia display. This illustration * shows an example of a vehicle approaching from both sides of the vehicle. *: Depending on the vehicle grade
and equipped options, the actual screen may be different from this illustration.
Outside rear view mirror indicators
If a vehicle is detected as approaching from the left or right behind the vehicle, both outside rear view mirror indicators( �P. 135) will blink and a buzzer will sound.
Driving assist information indicator
Illuminates when the RCTA is
The RCTA can be enabled / disabled through a customize setting.( �P. 617)
When the RCTA function is off, the driving assist information indicator( �P. 135) will illuminate and a message will be displayed on the multi-information display. Each time the power switch is turned to ON, the RCTA function is enabled.
nOutside rear view mirror indicator visibility
In strong sunlight, the outside rear view mirror indicator may be difficult to see.
nHearing the RCTA buzzer
The RCTA buzzer may be difficult to hear over loud noises, such as if the audio system volume is high.
nRear side radar sensors �P. 318
RCTA function
n Operation of the RCTA function
The RCTA function uses rear side radar sensors to detect vehicles approaching from the right or left at the rear of the vehicle and alerts the driver of the presence of such vehicles
