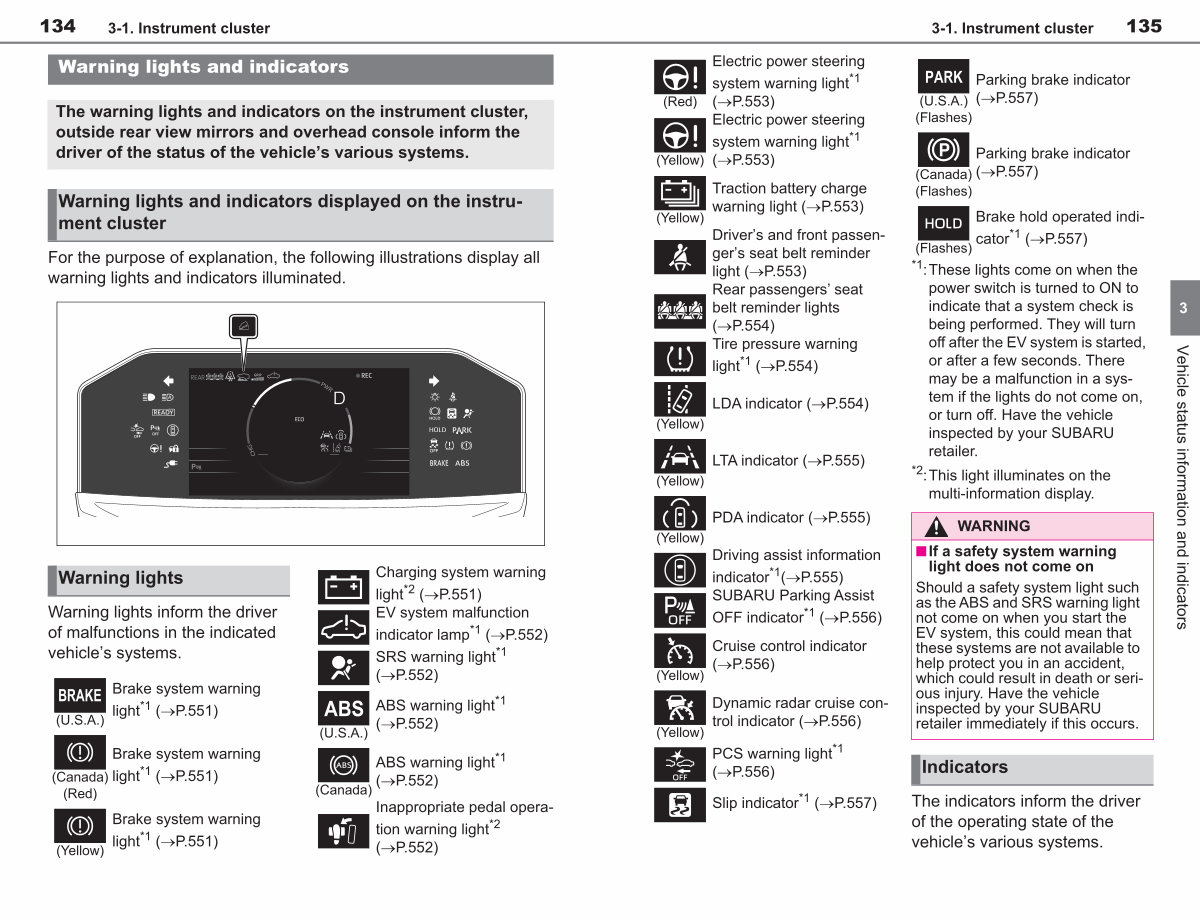

3-1. Instrument cluster
135
( Red)
( Yellow)
( Yellow)
( Yellow)
( Yellow)
Electric power steering
system warning light * 1( �P. 553) Electric power steering
system warning light * 1( �P. 553)
Traction battery charge warning light( �P. 553)
Driver’ s and front passenger’ s seat belt reminder light( �P. 553) Rear passengers’ seat belt reminder lights( �P. 554) Tire pressure warning
light * 1( �P. 554)
LDA indicator( �P. 554)
LTA indicator( �P. 555)
PDA indicator( �P. 555)
( Yellow) Driving assist information
indicator * 1( �P. 555) SUBARU Parking Assist
OFF indicator * 1( �P. 556)
( Yellow)
( Yellow)
Cruise control indicator( �P. 556)
Dynamic radar cruise control indicator( �P. 556)
PCS warning light * 1( �P. 556)
Slip indicator * 1( �P. 557)
Parking brake indicator
( U. S. A.)( �P. 557)( Flashes)
Parking brake indicator
( Canada)( �P. 557)( Flashes)
Brake hold operated indicator * 1( �P. 557)( Flashes) * 1: These lights come on when the
power switch is turned to ON to indicate that a system check is being performed. They will turn off after the EV system is started, or after a few seconds. There may be a malfunction in a system if the lights do not come on, or turn off. Have the vehicle inspected by your SUBARU retailer.
* 2: This light illuminates on the
multi-information display.
WARNING
n If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on when you start the EV system, this could mean that
these systems are not available to help protect you in an accident, which could result in death or serious injury. Have the vehicle inspected by your SUBARU retailer immediately if this occurs.
Indicators
The indicators inform the driver of the operating state of the vehicle’ s various systems.
3
Vehicle status information and indicators
