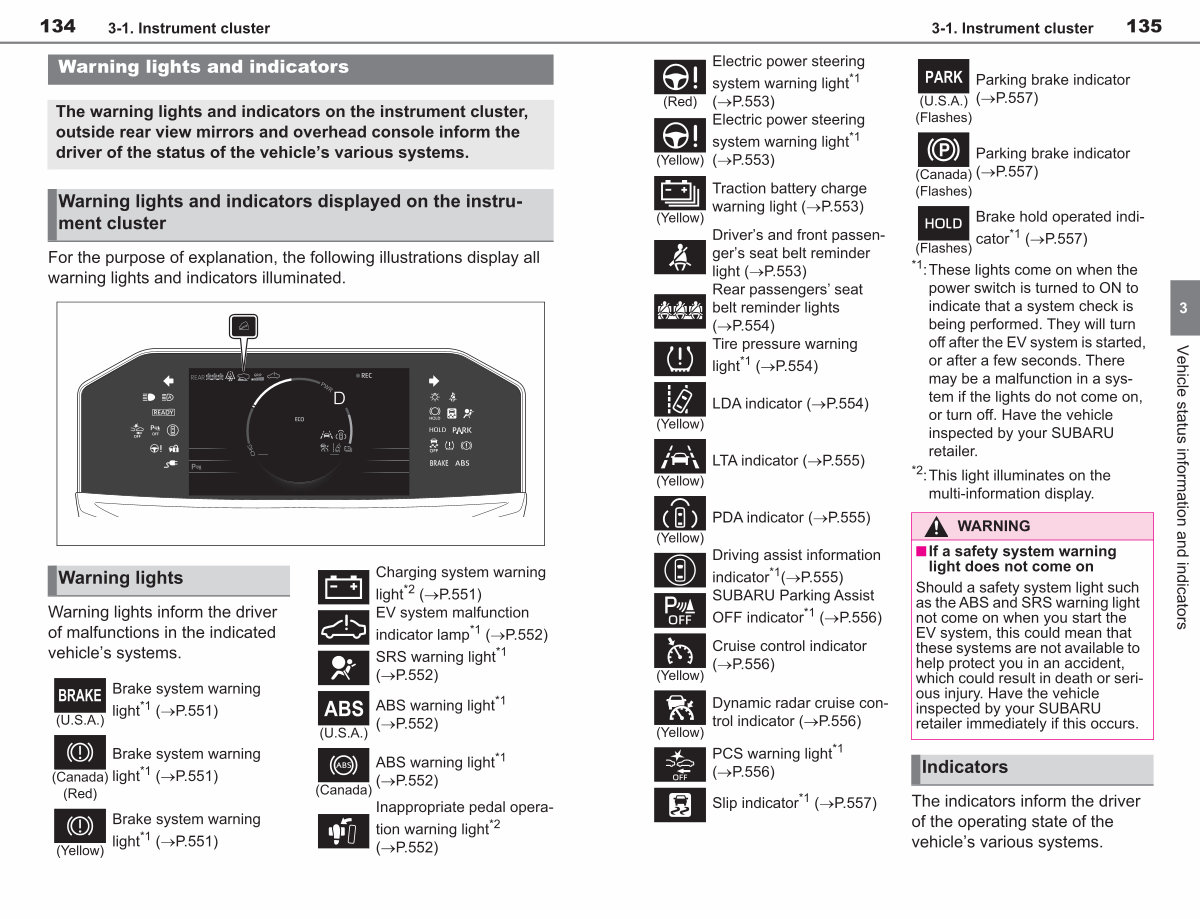

134 3-1. Instrument cluster
Warning lights and indicators
3-1. Instrument cluster
The warning lights and indicators on the instrument cluster, outside rear view mirrors and overhead console inform the driver of the status of the vehicle’ s various systems.
Warning lights and indicators displayed on the instrument cluster
For the purpose of explanation, the following illustrations display all warning lights and indicators illuminated.
Warning lights
Warning lights inform the driver of malfunctions in the indicated vehicle’ s systems.
( U. S. A.)
( Canada)( Red)
( Yellow)
Brake system warning light * 1( �P. 551)
Brake system warning light * 1( �P. 551)
Brake system warning light * 1( �P. 551)
( U. S. A.)
Charging system warning
light * 2( �P. 551) EV system malfunction
indicator lamp * 1( �P. 552)
SRS warning light * 1( �P. 552)
ABS warning light * 1( �P. 552)
ABS warning light * 1( �P. 552)
( Canada) Inappropriate pedal operation warning light * 2( �P. 552)
