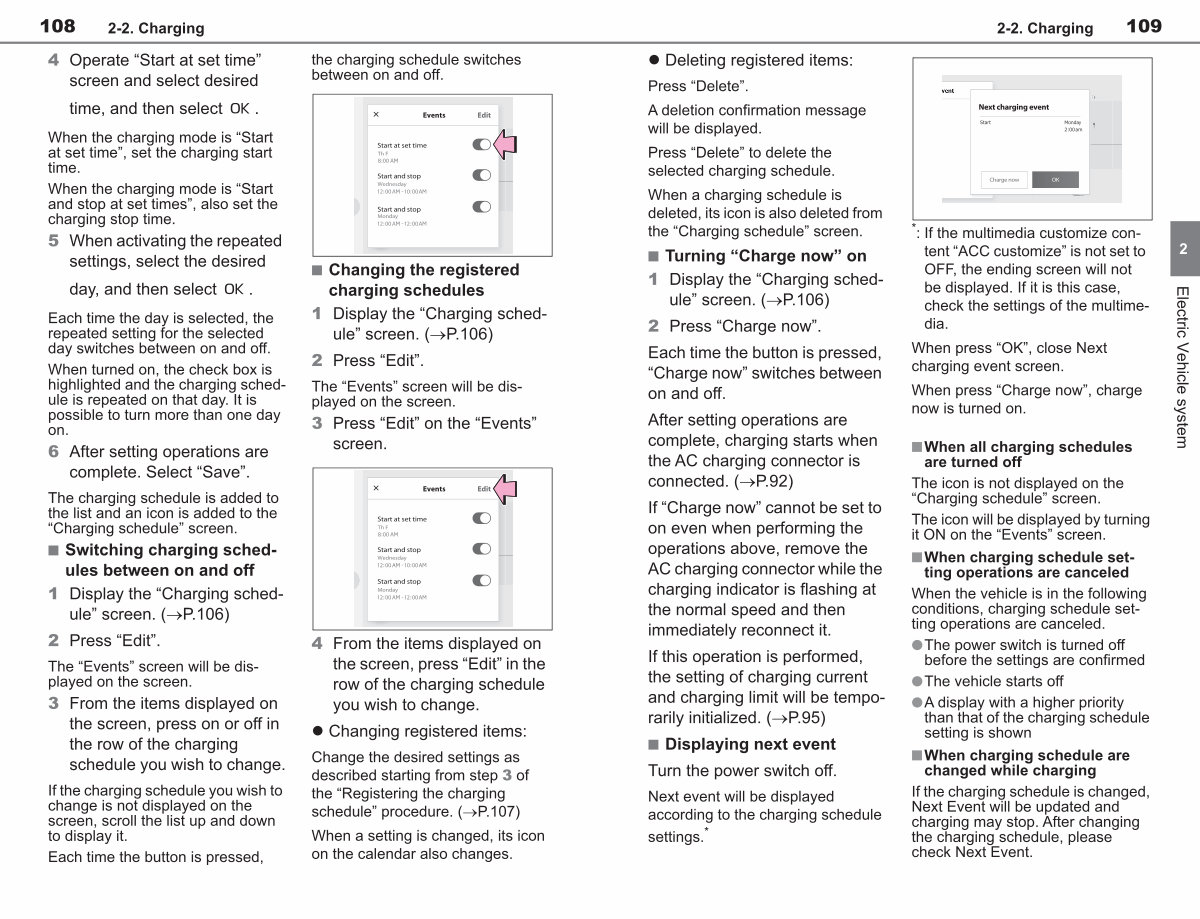

108 2-2. Charging
4 Operate“ Start at set time” screen and select desired
time, and then select.
When the charging mode is“ Start at set time”, set the charging start time.
When the charging mode is“ Start
and stop at set times”, also set the charging stop time.
5 When activating the repeated settings, select the desired
day, and then select.
Each time the day is selected, the
repeated setting for the selected day switches between on and off.
When turned on, the check box is highlighted and the charging schedule is repeated on that day. It is possible to turn more than one day on.
6 After setting operations are complete. Select“ Save”.
The charging schedule is added to the list and an icon is added to the“ Charging schedule” screen.
n Switching charging schedules between on and off 1 Display the“ Charging schedule” screen.( �P. 106)
2 Press“ Edit”.
The“ Events” screen will be displayed on the screen.
3 From the items displayed on the screen, press on or off in the row of the charging schedule you wish to change.
If the charging schedule you wish to change is not displayed on the screen, scroll the list up and down to display it.
Each time the button is pressed, the charging schedule switches between on and off.
n Changing the registered charging schedules
1 Display the“ Charging schedule” screen.( �P. 106)
2 Press“ Edit”.
The“ Events” screen will be displayed on the screen.
3 Press“ Edit” on the“ Events” screen.
4 From the items displayed on the screen, press“ Edit” in the row of the charging schedule you wish to change.
• Changing registered items:
Change the desired settings as described starting from step 3 of the“ Registering the charging schedule” procedure.( �P. 107)
When a setting is changed, its icon on the calendar also changes.
