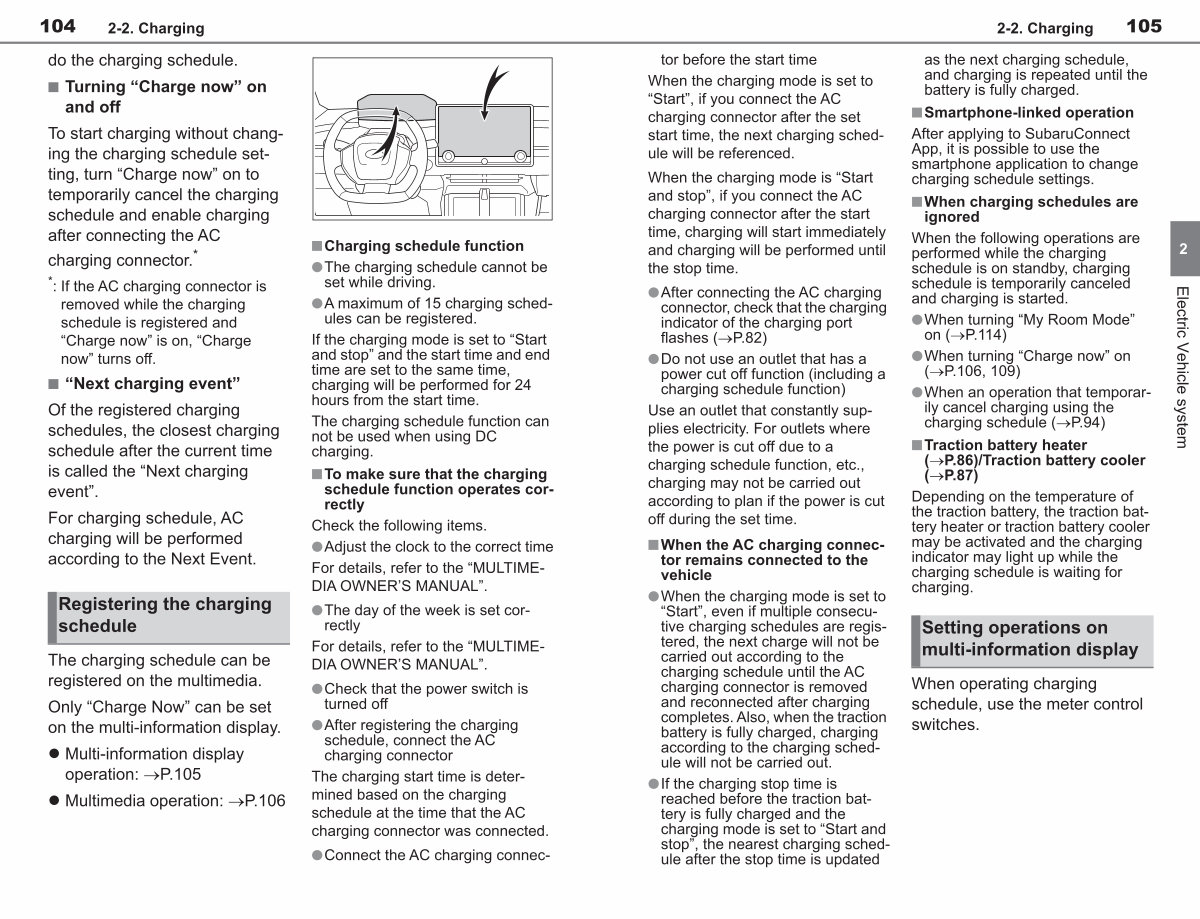

104 2-2. Charging
do the charging schedule.
n Turning“ Charge now” on and off
To start charging without changing the charging schedule setting, turn“ Charge now” on to temporarily cancel the charging schedule and enable charging after connecting the AC
charging connector. * *: If the AC charging connector is
removed while the charging schedule is registered and“ Charge now” is on,“ Charge now” turns off.
n“ Next charging event”
Of the registered charging schedules, the closest charging schedule after the current time is called the“ Next charging event”.
For charging schedule, AC charging will be performed according to the Next Event.
Registering the charging schedule
The charging schedule can be registered on the multimedia.
Only“ Charge Now” can be set on the multi-information display.
• Multi-information display operation: �P. 105
• Multimedia operation: �P. 106 nCharging schedule function
lThe charging schedule cannot be set while driving.
lA maximum of 15 charging schedules can be registered.
If the charging mode is set to“ Start and stop” and the start time and end time are set to the same time, charging will be performed for 24 hours from the start time.
The charging schedule function can not be used when using DC charging.
nTo make sure that the charging schedule function operates correctly
Check the following items. lAdjust the clock to the correct time
For details, refer to the“ MULTIME- DIA OWNER’ S MANUAL”.
lThe day of the week is set correctly
For details, refer to the“ MULTIME- DIA OWNER’ S MANUAL”.
lCheck that the power switch is turned off
lAfter registering the charging schedule, connect the AC charging connector
The charging start time is determined based on the charging schedule at the time that the AC charging connector was connected.
lConnect the AC charging connec-
