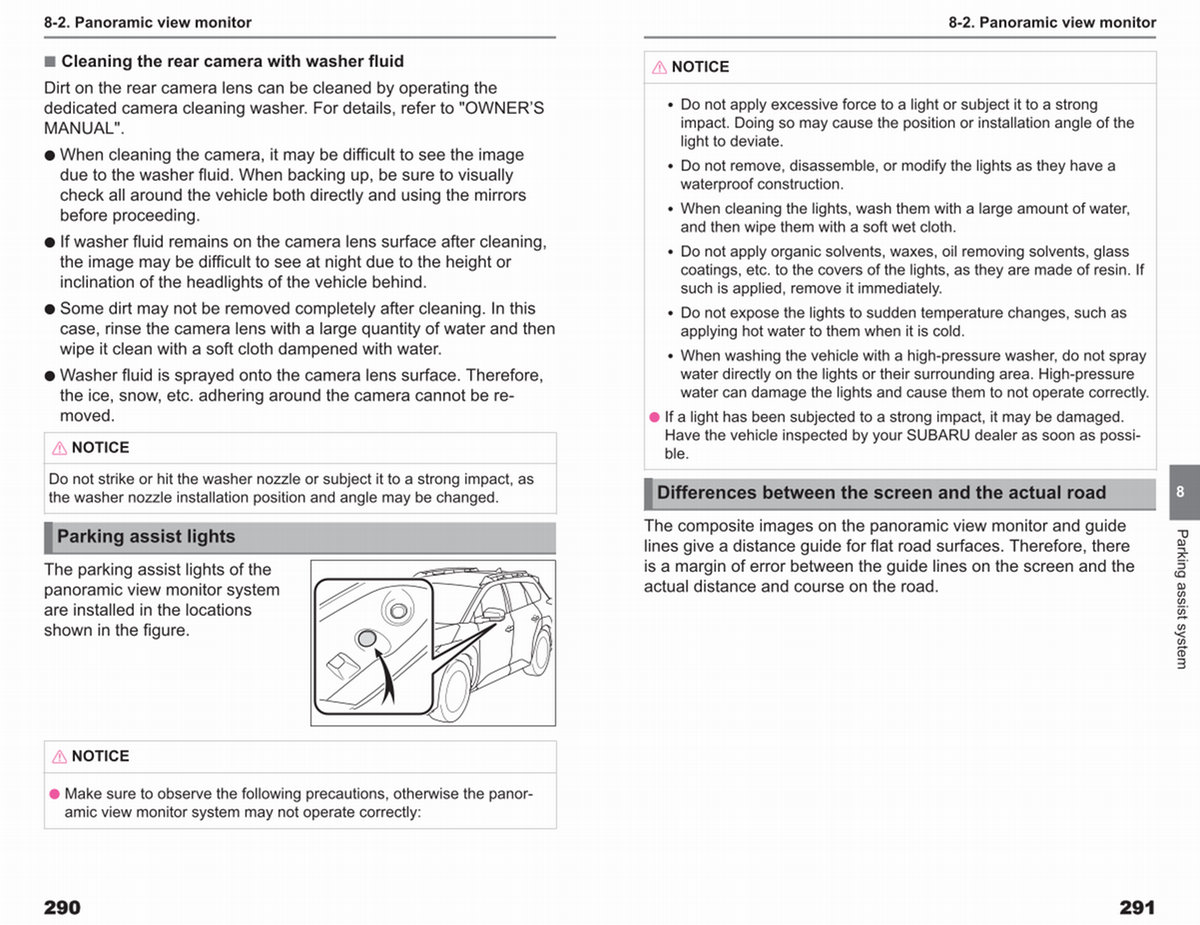

8-2. Panoramic view monitor
NOTICE
• Do not apply excessive force to a light or subject it to a strong impact. Doing so may cause the position or installation angle of the light to deviate.
• Do not remove, disassemble, or modify the lights as they have a waterproof construction.
• When cleaning the lights, wash them with a large amount of water, and then wipe them with a soft wet cloth.
• Do not apply organic solvents, waxes, oil removing solvents, glass coatings, etc. to the covers of the lights, as they are made of resin. If such is applied, remove it immediately.
• Do not expose the lights to sudden temperature changes, such as applying hot water to them when it is cold.
• When washing the vehicle with a high-pressure washer, do not spray water directly on the lights or their surrounding area. High-pressure water can damage the lights and cause them to not operate correctly.
● If a light has been subjected to a strong impact, it may be damaged. Have the vehicle inspected by your SUBARU dealer as soon as possible.
Differences between the screen and the actual road
The composite images on the panoramic view monitor and guide lines give a distance guide for flat road surfaces. Therefore, there is a margin of error between the guide lines on the screen and the actual distance and course on the road.
8
Parking assist system
291
