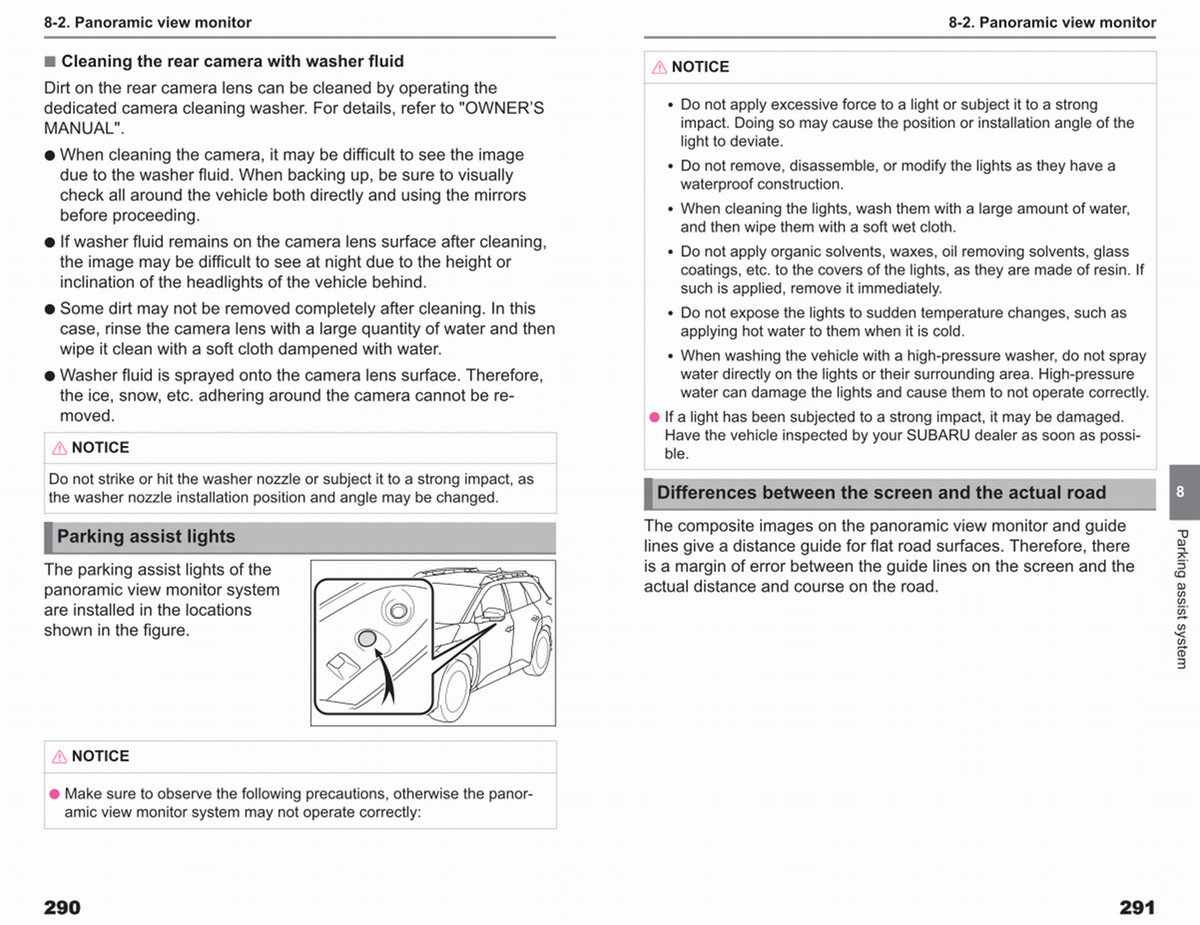

8-2. Panoramic view monitor
■ Cleaning the rear camera with washer fluid
Dirt on the rear camera lens can be cleaned by operating the dedicated camera cleaning washer. For details, refer to " OWNER’ S MANUAL ".
● When cleaning the camera, it may be difficult to see the image due to the washer fluid. When backing up, be sure to visually check all around the vehicle both directly and using the mirrors before proceeding.
● If washer fluid remains on the camera lens surface after cleaning, the image may be difficult to see at night due to the height or inclination of the headlights of the vehicle behind.
● Some dirt may not be removed completely after cleaning. In this case, rinse the camera lens with a large quantity of water and then wipe it clean with a soft cloth dampened with water.
● Washer fluid is sprayed onto the camera lens surface. Therefore, the ice, snow, etc. adhering around the camera cannot be removed.
NOTICE
Do not strike or hit the washer nozzle or subject it to a strong impact, as the washer nozzle installation position and angle may be changed.
Parking assist lights
The parking assist lights of the panoramic view monitor system are installed in the locations shown in the figure.
NOTICE
● Make sure to observe the following precautions, otherwise the panoramic view monitor system may not operate correctly:
290
