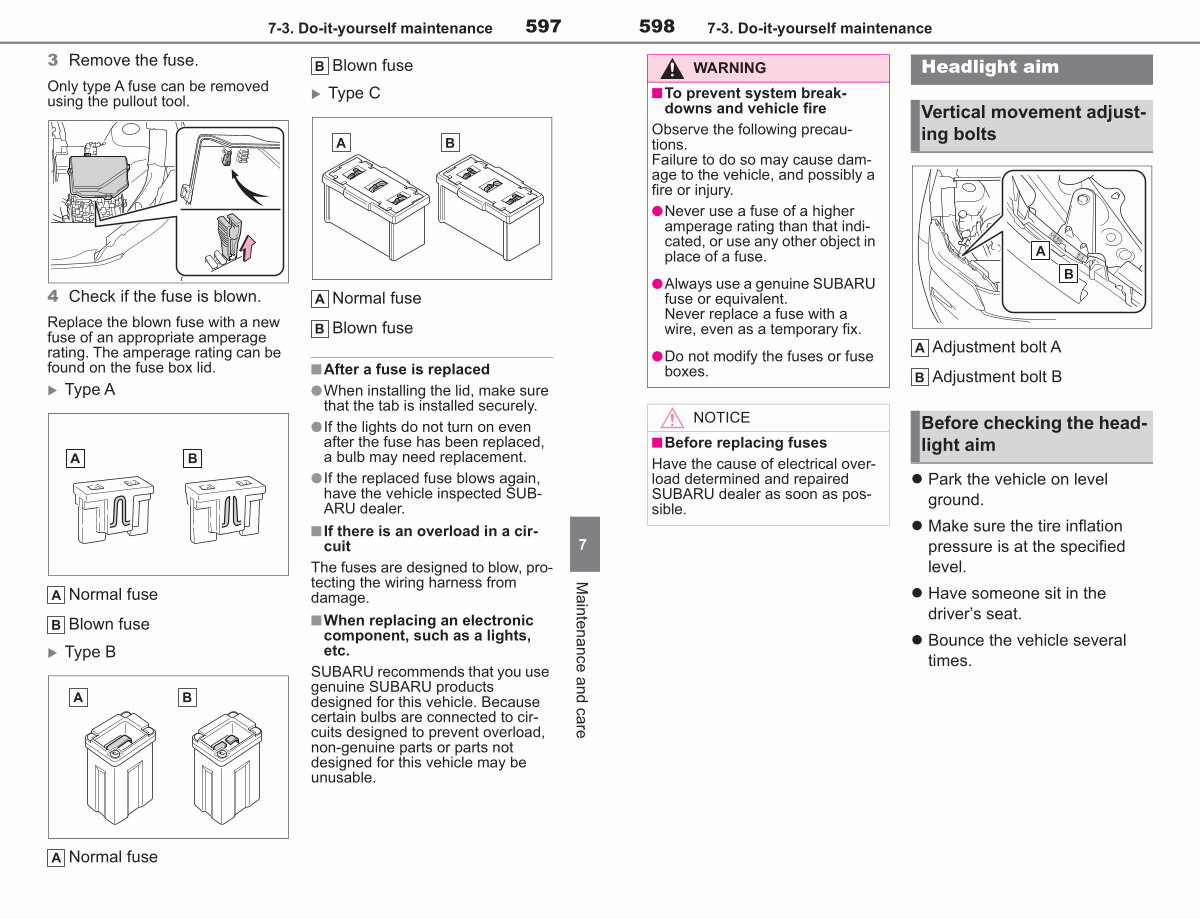

7-3. Do-it-yourself maintenance
597
3 Remove the fuse. Only type A fuse can be removed using the pullout tool.
Blown fuse
� Type C
4 Check if the fuse is blown.
Replace the blown fuse with a new fuse of an appropriate amperage rating. The amperage rating can be found on the fuse box lid.
� Type A
Normal fuse Blown fuse
� Type B
Normal fuse Blown fuse
■ After a fuse is replaced
●When installing the lid, make sure that the tab is installed securely.
●If the lights do not turn on even after the fuse has been replaced, a bulb may need replacement.
●If the replaced fuse blows again,
have the vehicle inspected SUB- ARU dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from
damage.
■ When replacing an electronic component, such as a lights, etc.
SUBARU recommends that you use genuine SUBARU products
designed for this vehicle. Because certain bulbs are connected to circuits designed to prevent overload,
non-genuine parts or parts not designed for this vehicle may be unusable.
7
Maintenance and care
Normal fuse
