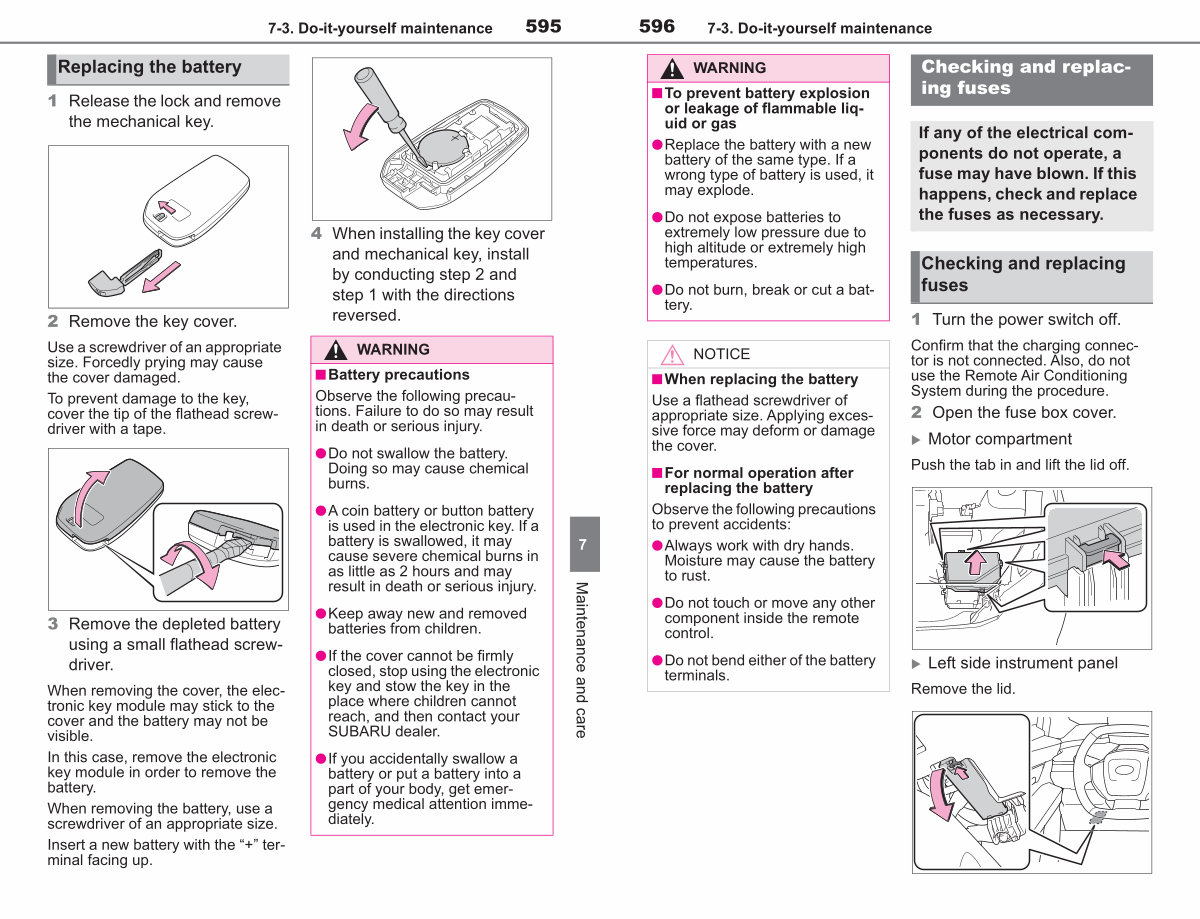

596 7-3. Do-it-yourself maintenance
WARNING
■ To prevent battery explosion or leakage of flammable liquid or gas
●Replace the battery with a new battery of the same type. If a wrong type of battery is used, it
may explode.
●Do not expose batteries to extremely low pressure due to
high altitude or extremely high temperatures.
●Do not burn, break or cut a battery.
NOTICE
■ When replacing the battery
Use a flathead screwdriver of appropriate size. Applying excessive force may deform or damage
the cover.
■ For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands. Moisture may cause the battery to rust.
●Do not touch or move any other component inside the remote control.
●Do not bend either of the battery terminals.
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown. If this happens, check and replace the fuses as necessary.
Checking and replacing fuses
1 Turn the power switch off.
Confirm that the charging connector is not connected. Also, do not use the Remote Air Conditioning System during the procedure.
2 Open the fuse box cover.
� Motor compartment Push the tab in and lift the lid off.
� Left side instrument panel Remove the lid.
