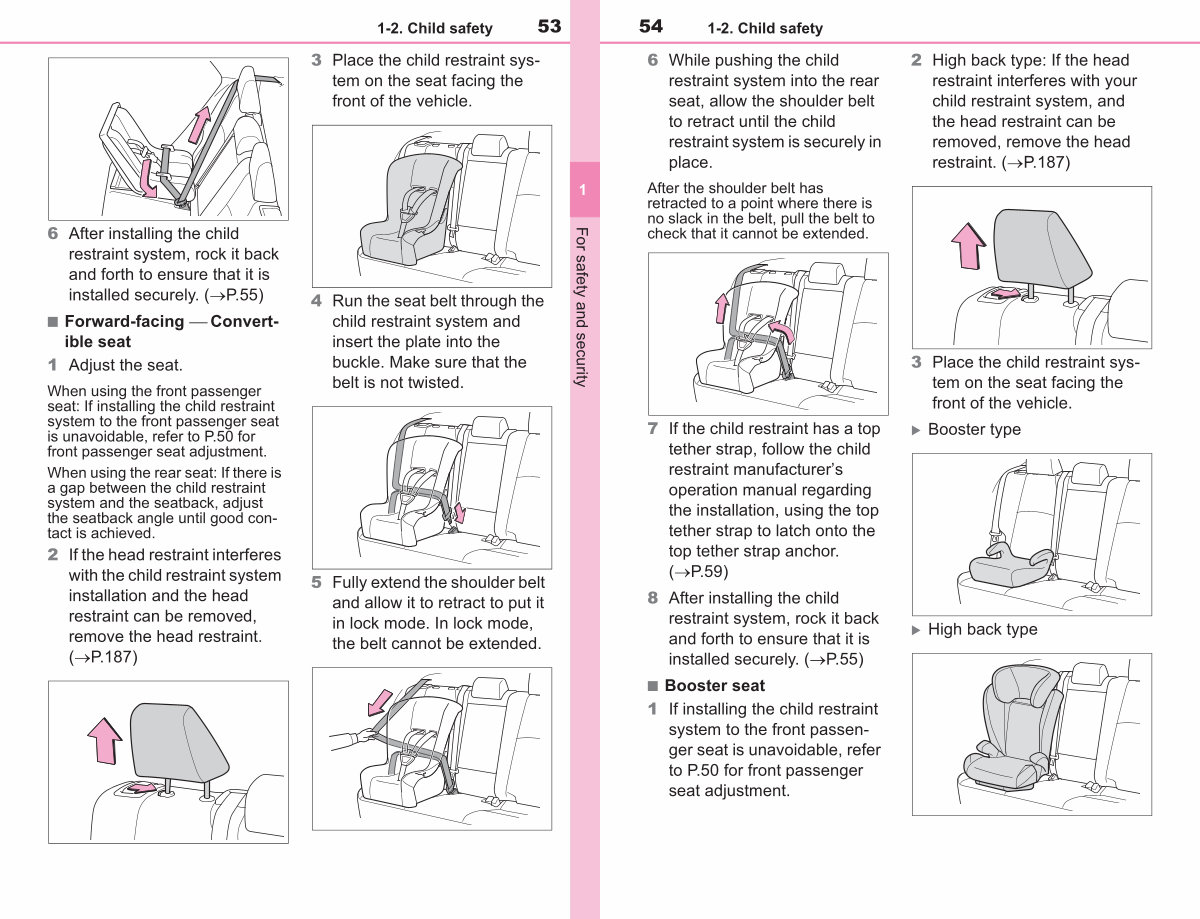

1-2. Child safety
53
3 Place the child restraint system on the seat facing the front of the vehicle.
1
6 After installing the child restraint system, rock it back and forth to ensure that it is installed securely.( �P. 55)
■ Forward-facing � Convertible seat
1 Adjust the seat.
When using the front passenger seat: If installing the child restraint system to the front passenger seat is unavoidable, refer to P. 50 for front passenger seat adjustment.
When using the rear seat: If there is a gap between the child restraint system and the seatback, adjust the seatback angle until good contact is achieved.
2 If the head restraint interferes with the child restraint system installation and the head restraint can be removed, remove the head restraint.( �P. 187)
4 Run the seat belt through the child restraint system and insert the plate into the buckle. Make sure that the belt is not twisted.
5 Fully extend the shoulder belt and allow it to retract to put it in lock mode. In lock mode, the belt cannot be extended.
For safety and security
