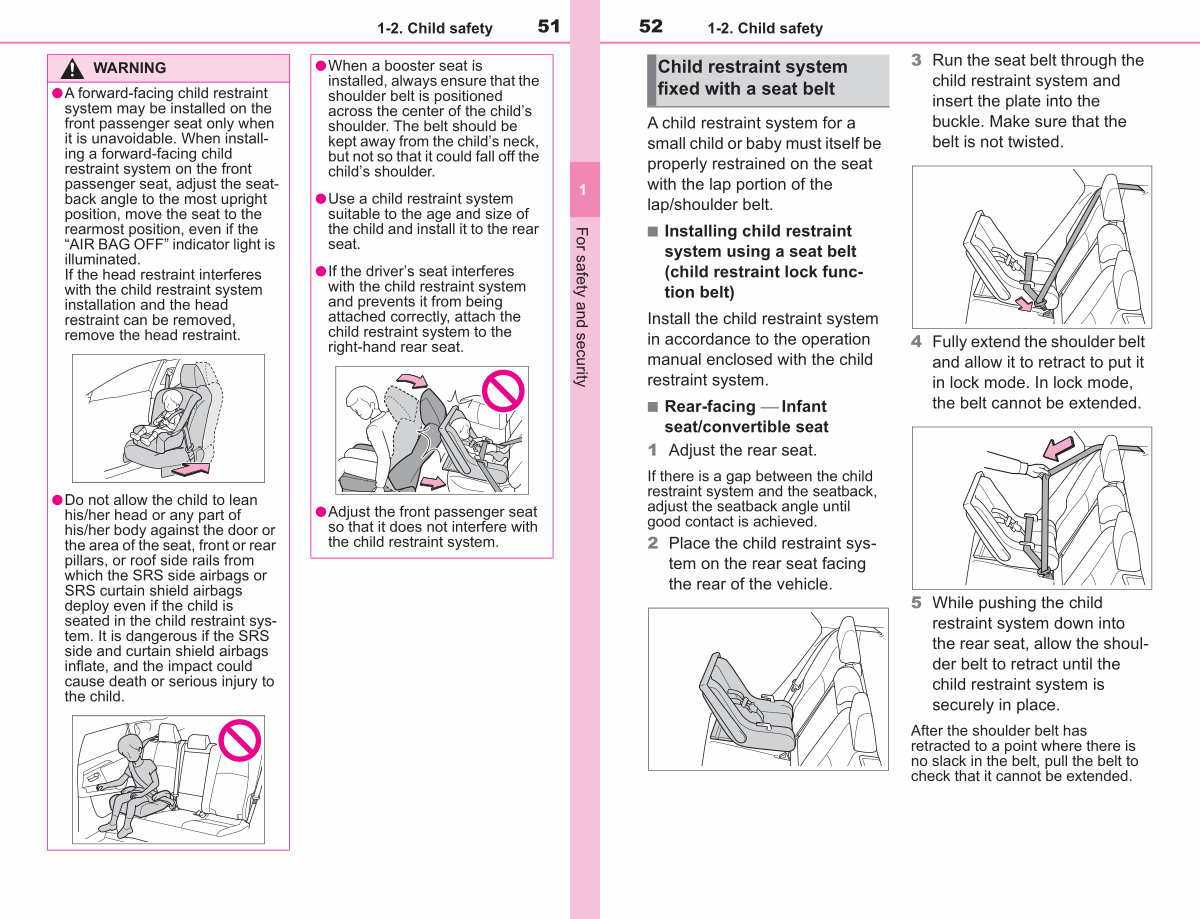

52 1-2. Child safety
Child restraint system fixed with a seat belt
A child restraint system for a small child or baby must itself be properly restrained on the seat with the lap portion of the lap / shoulder belt.
■ Installing child restraint system using a seat belt( child restraint lock function belt)
Install the child restraint system in accordance to the operation manual enclosed with the child restraint system.
■ Rear-facing � Infant seat / convertible seat
1 Adjust the rear seat.
If there is a gap between the child restraint system and the seatback, adjust the seatback angle until
good contact is achieved.
2 Place the child restraint system on the rear seat facing the rear of the vehicle.
3 Run the seat belt through the child restraint system and insert the plate into the buckle. Make sure that the belt is not twisted.
4 Fully extend the shoulder belt and allow it to retract to put it in lock mode. In lock mode, the belt cannot be extended.
5 While pushing the child restraint system down into the rear seat, allow the shoulder belt to retract until the child restraint system is securely in place.
After the shoulder belt has retracted to a point where there is no slack in the belt, pull the belt to check that it cannot be extended.
