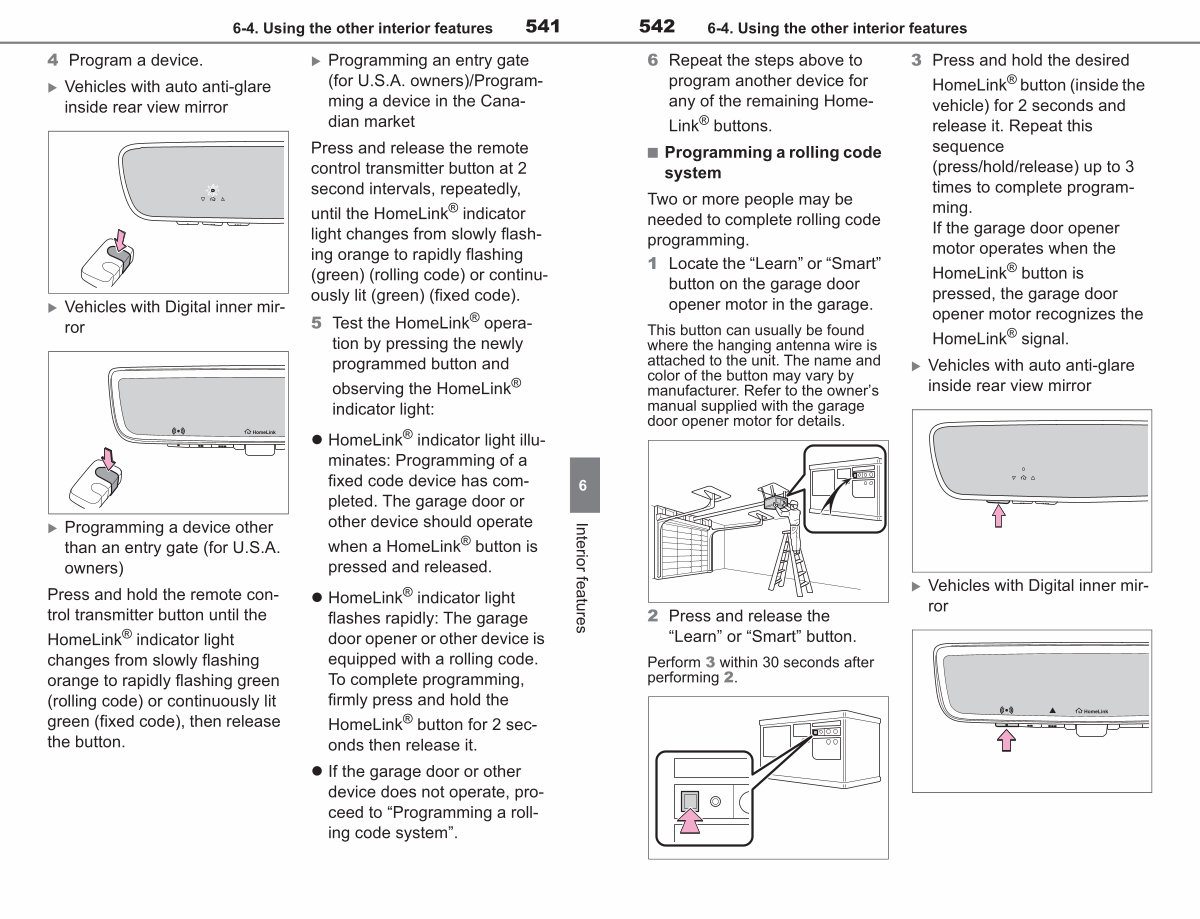

6-4. Using the other interior features
541
4 Program a device.
� Vehicles with auto anti-glare inside rear view mirror
� Vehicles with Digital inner mirror
� Programming a device other than an entry gate( for U. S. A. owners)
Press and hold the remote control transmitter button until the
HomeLink ® indicator light changes from slowly flashing orange to rapidly flashing green( rolling code) or continuously lit green( fixed code), then release the button.
� Programming an entry gate( for U. S. A. owners)/ Programming a device in the Canadian market
Press and release the remote control transmitter button at 2 second intervals, repeatedly,
until the HomeLink ® indicator light changes from slowly flashing orange to rapidly flashing( green)( rolling code) or continuously lit( green)( fixed code).
5 Test the HomeLink ® operation by pressing the newly programmed button and
observing the HomeLink ® indicator light:
• HomeLink ® indicator light illuminates: Programming of a fixed code device has completed. The garage door or other device should operate
when a HomeLink ® button is pressed and released.
• HomeLink ® indicator light flashes rapidly: The garage door opener or other device is equipped with a rolling code. To complete programming, firmly press and hold the
HomeLink ® button for 2 seconds then release it.
• If the garage door or other device does not operate, proceed to“ Programming a rolling code system”.
6
Interior features
