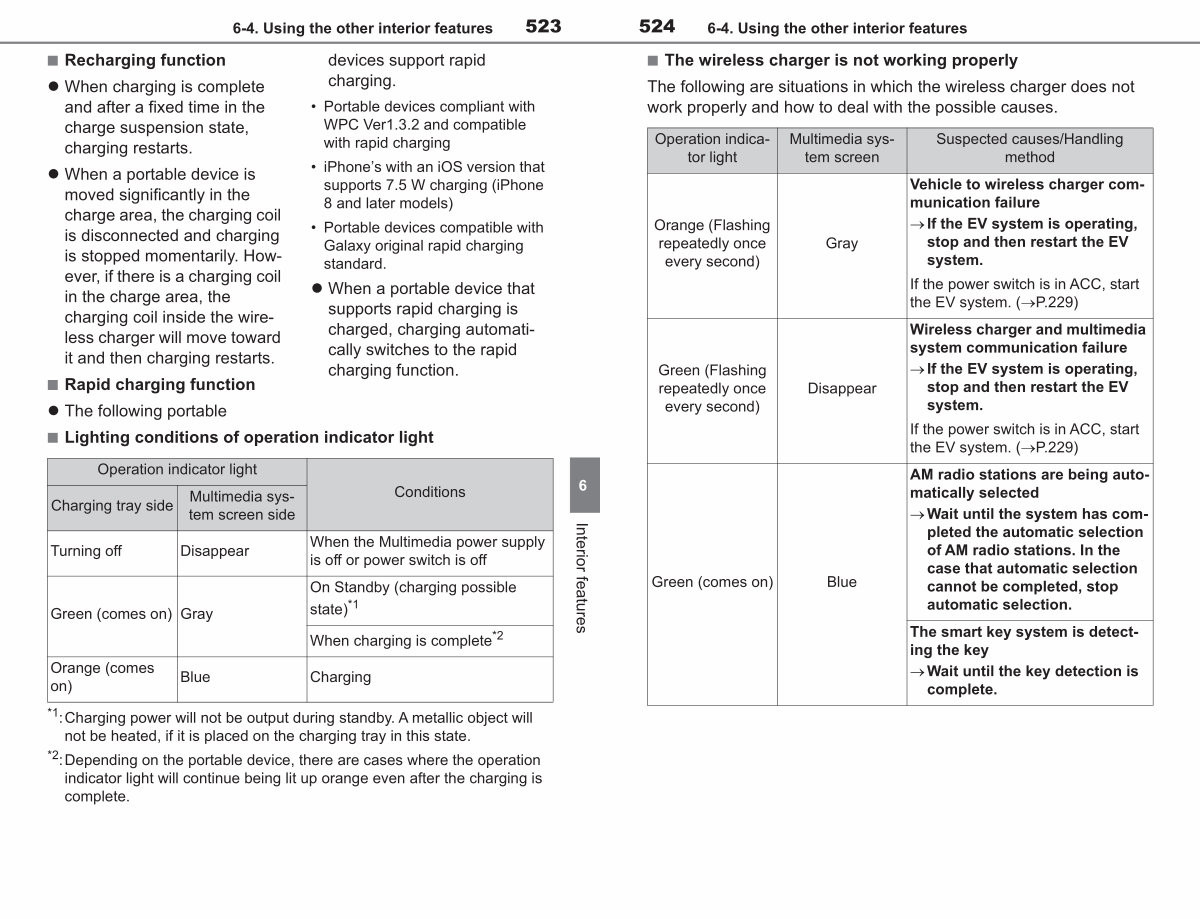

6-4. Using the other interior features
523 devices support rapid charging.
■ Recharging function
• When charging is complete and after a fixed time in the charge suspension state, charging restarts.
• When a portable device is moved significantly in the charge area, the charging coil is disconnected and charging is stopped momentarily. However, if there is a charging coil in the charge area, the charging coil inside the wireless charger will move toward it and then charging restarts.
■ Rapid charging function
• The following portable
■ Lighting conditions of operation indicator light
• Portable devices compliant with WPC Ver1.3.2 and compatible with rapid charging
• iPhone’ s with an iOS version that supports 7.5 W charging( iPhone 8 and later models)
• Portable devices compatible with Galaxy original rapid charging standard.
• When a portable device that supports rapid charging is charged, charging automatically switches to the rapid charging function.
Operation indicator light Charging tray side
Turning off
Green( comes on) Gray
Multimedia system screen side
Disappear
Conditions
When the Multimedia power supply is off or power switch is off
On Standby( charging possible state) * 1
When charging is complete * 2
6
Interior features
Orange( comes on)
Blue
Charging
* 1: Charging power will not be output during standby. A metallic object will not be heated, if it is placed on the charging tray in this state.
* 2: Depending on the portable device, there are cases where the operation
indicator light will continue being lit up orange even after the charging is complete.
