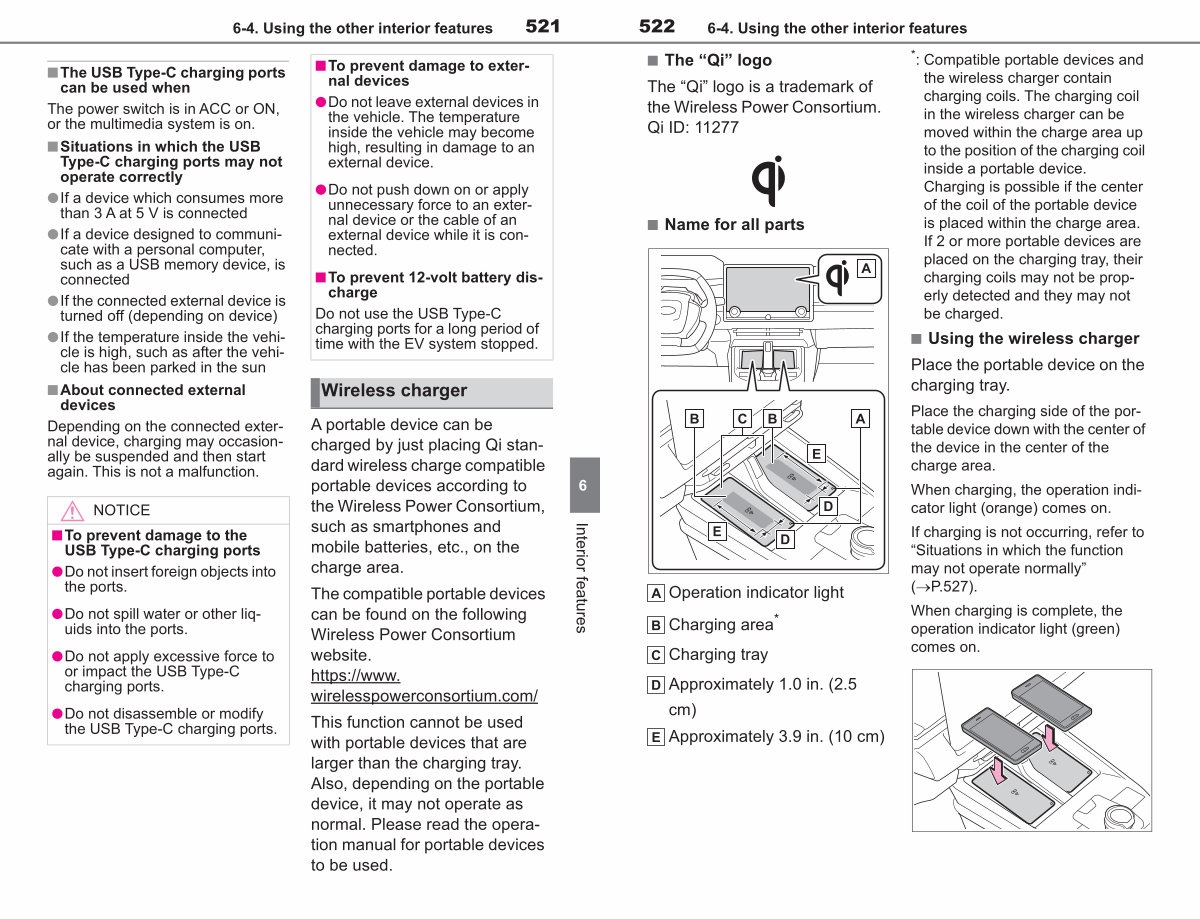

522 6-4. Using the other interior features
■ The“ Qi” logo
The“ Qi” logo is a trademark of the Wireless Power Consortium. Qi ID: 11277
■ Name for all parts
Operation indicator light Charging area * Charging tray Approximately 1.0 in.( 2.5 cm) Approximately 3.9 in.( 10 cm)
*: Compatible portable devices and
the wireless charger contain charging coils. The charging coil in the wireless charger can be moved within the charge area up to the position of the charging coil inside a portable device. Charging is possible if the center of the coil of the portable device is placed within the charge area. If 2 or more portable devices are placed on the charging tray, their charging coils may not be properly detected and they may not be charged.
■ Using the wireless charger
Place the portable device on the charging tray.
Place the charging side of the portable device down with the center of the device in the center of the charge area.
When charging, the operation indicator light( orange) comes on.
If charging is not occurring, refer to“ Situations in which the function may not operate normally”( �P. 527).
When charging is complete, the operation indicator light( green) comes on.
