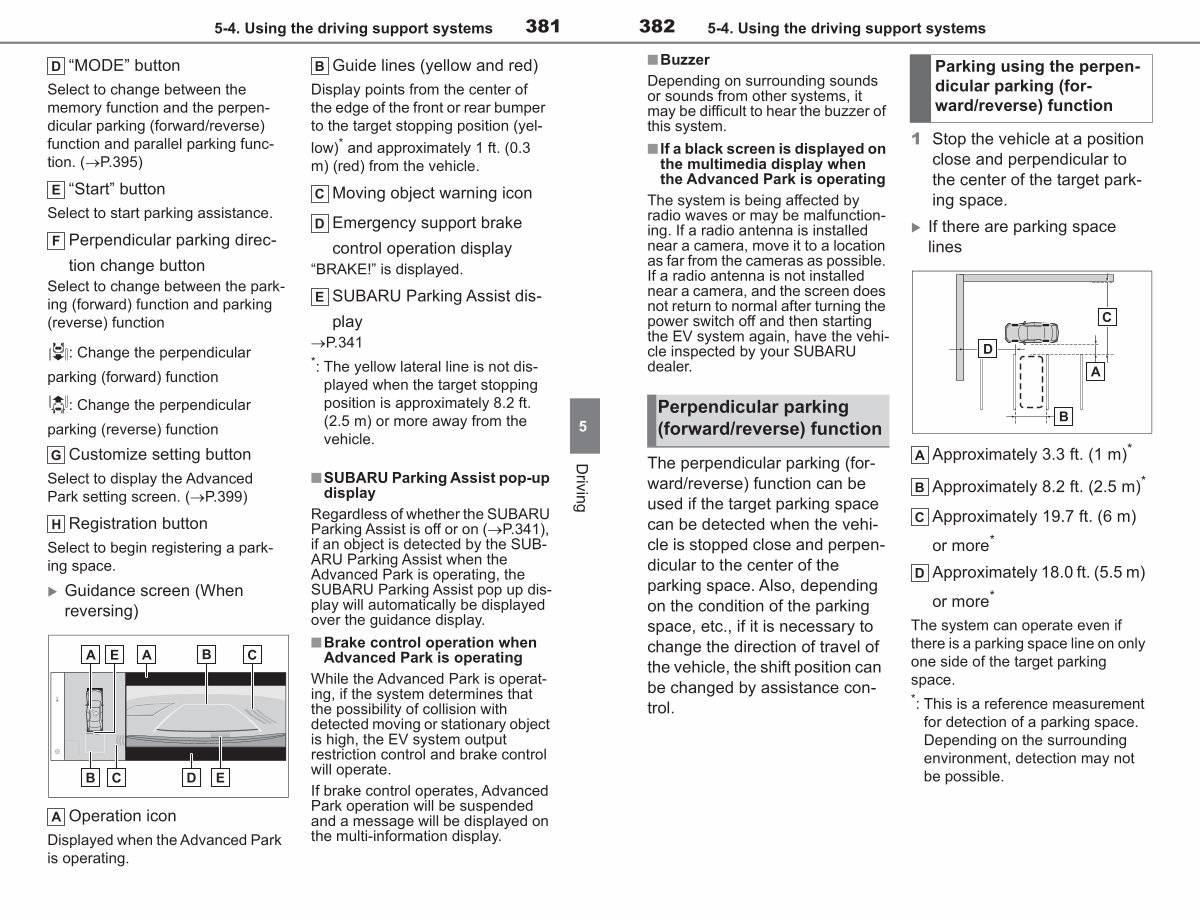

382 5-4. Using the driving support systems
■ Buzzer
Depending on surrounding sounds or sounds from other systems, it may be difficult to hear the buzzer of this system.
■ If a black screen is displayed on the multimedia display when the Advanced Park is operating
The system is being affected by radio waves or may be malfunctioning. If a radio antenna is installed
near a camera, move it to a location as far from the cameras as possible. If a radio antenna is not installed
near a camera, and the screen does not return to normal after turning the power switch off and then starting
the EV system again, have the vehicle inspected by your SUBARU dealer.
Perpendicular parking( forward / reverse) function
The perpendicular parking( forward / reverse) function can be used if the target parking space can be detected when the vehicle is stopped close and perpendicular to the center of the parking space. Also, depending on the condition of the parking space, etc., if it is necessary to change the direction of travel of the vehicle, the shift position can be changed by assistance control.
Parking using the perpendicular parking( forward / reverse) function
1 Stop the vehicle at a position close and perpendicular to the center of the target parking space.
� If there are parking space lines
Approximately 3.3 ft.( 1 m) * Approximately 8.2 ft.( 2.5 m) * Approximately 19.7 ft.( 6 m) or more * Approximately 18.0 ft.( 5.5 m)
or more *
The system can operate even if there is a parking space line on only one side of the target parking space. *: This is a reference measurement
for detection of a parking space. Depending on the surrounding environment, detection may not be possible.
