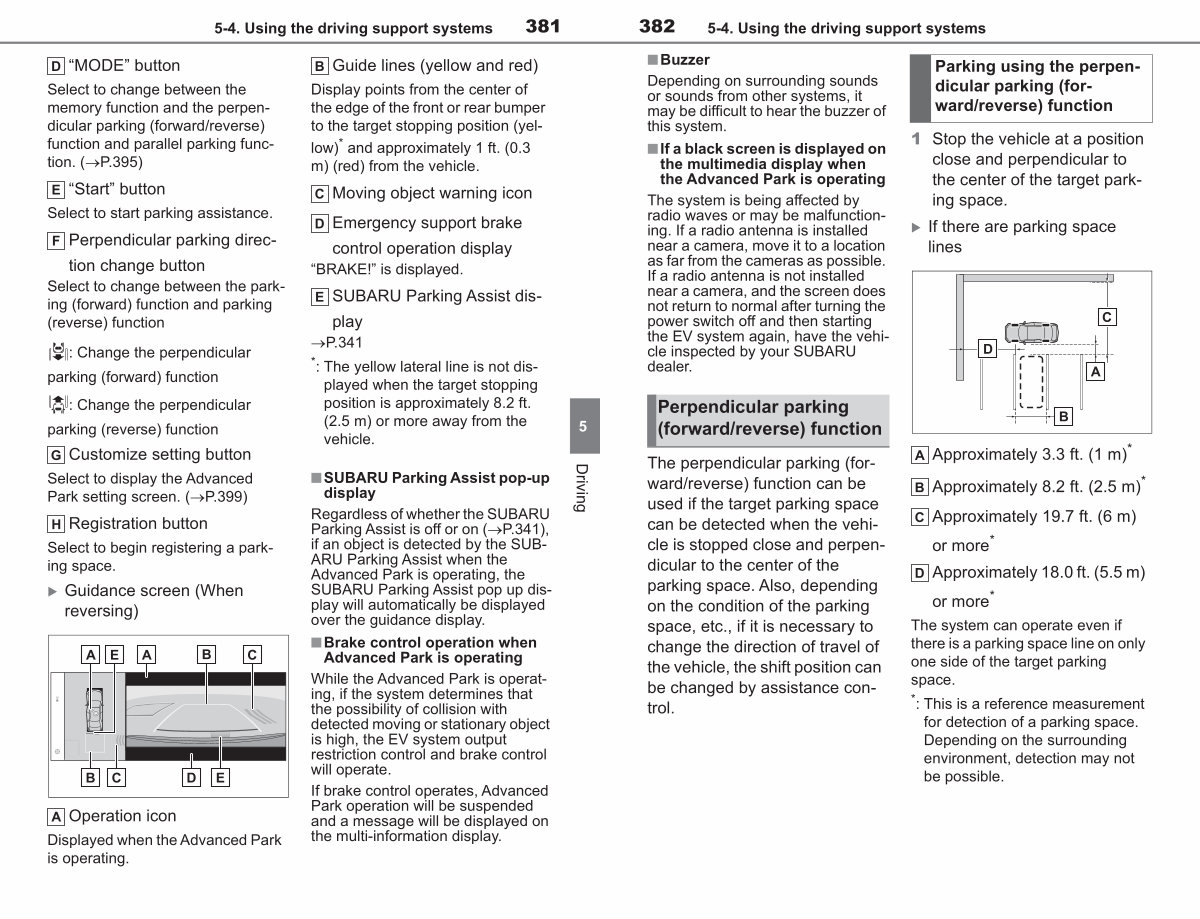

5-4. Using the driving support systems
381
“ MODE” button
Select to change between the memory function and the perpendicular parking( forward / reverse) function and parallel parking function.( �P. 395)
“ Start” button
Select to start parking assistance. Perpendicular parking direction change button Select to change between the parking( forward) function and parking( reverse) function
: Change the perpendicular parking( forward) function
: Change the perpendicular parking( reverse) function
Customize setting button
Select to display the Advanced Park setting screen.( �P. 399)
Registration button
Select to begin registering a parking space.
� Guidance screen( When reversing)
Operation icon
Displayed when the Advanced Park is operating.
Guide lines( yellow and red)
Display points from the center of the edge of the front or rear bumper to the target stopping position( yellow) * and approximately 1 ft.( 0.3 m)( red) from the vehicle.
Moving object warning icon Emergency support brake control operation display
“ BRAKE!” is displayed. SUBARU Parking Assist display �P. 341 *: The yellow lateral line is not displayed when the target stopping position is approximately 8.2 ft.( 2.5 m) or more away from the vehicle.
■ SUBARU Parking Assist pop-up display
Regardless of whether the SUBARU Parking Assist is off or on( �P. 341), if an object is detected by the SUB-
ARU Parking Assist when the Advanced Park is operating, the SUBARU Parking Assist pop up display will automatically be displayed over the guidance display.
■ Brake control operation when Advanced Park is operating
While the Advanced Park is operating, if the system determines that the possibility of collision with detected moving or stationary object is high, the EV system output restriction control and brake control will operate.
If brake control operates, Advanced Park operation will be suspended
and a message will be displayed on the multi-information display.
