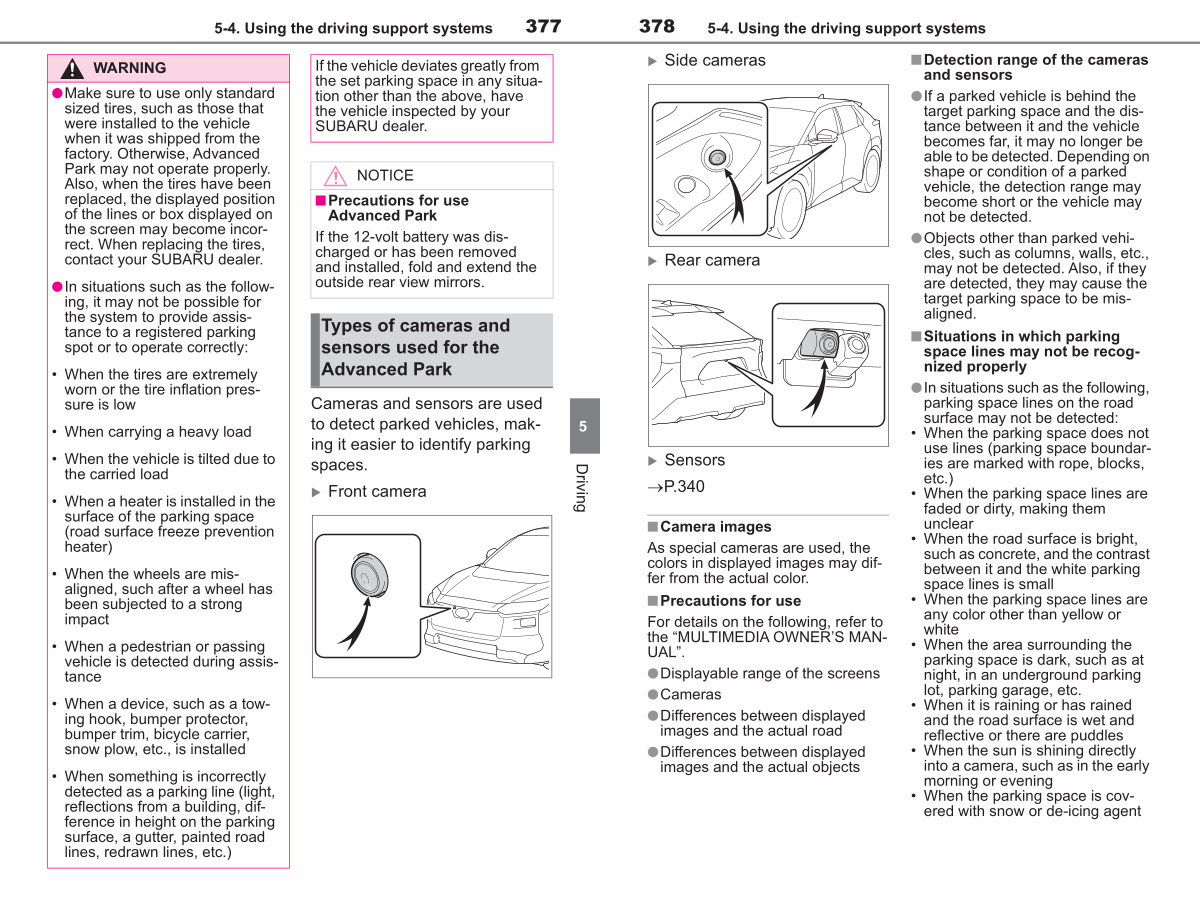

5-4. Using the driving support systems
377
WARNING
●Make sure to use only standard sized tires, such as those that were installed to the vehicle when it was shipped from the
factory. Otherwise, Advanced Park may not operate properly. Also, when the tires have been
replaced, the displayed position of the lines or box displayed on the screen may become incorrect. When replacing the tires, contact your SUBARU dealer.
●In situations such as the following, it may not be possible for the system to provide assistance to a registered parking
spot or to operate correctly:
• When the tires are extremely worn or the tire inflation pressure is low
• When carrying a heavy load
• When the vehicle is tilted due to the carried load
• When a heater is installed in the surface of the parking space( road surface freeze prevention heater)
• When the wheels are misaligned, such after a wheel has been subjected to a strong
impact
• When a pedestrian or passing vehicle is detected during assistance
• When a device, such as a towing hook, bumper protector, bumper trim, bicycle carrier, snow plow, etc., is installed
• When something is incorrectly detected as a parking line( light, reflections from a building, difference in height on the parking
surface, a gutter, painted road lines, redrawn lines, etc.)
If the vehicle deviates greatly from the set parking space in any situation other than the above, have the vehicle inspected by your SUBARU dealer.
NOTICE
■ Precautions for use Advanced Park
If the 12-volt battery was discharged or has been removed and installed, fold and extend the outside rear view mirrors.
Types of cameras and sensors used for the Advanced Park
Cameras and sensors are used to detect parked vehicles, making it easier to identify parking spaces.
� Front camera
