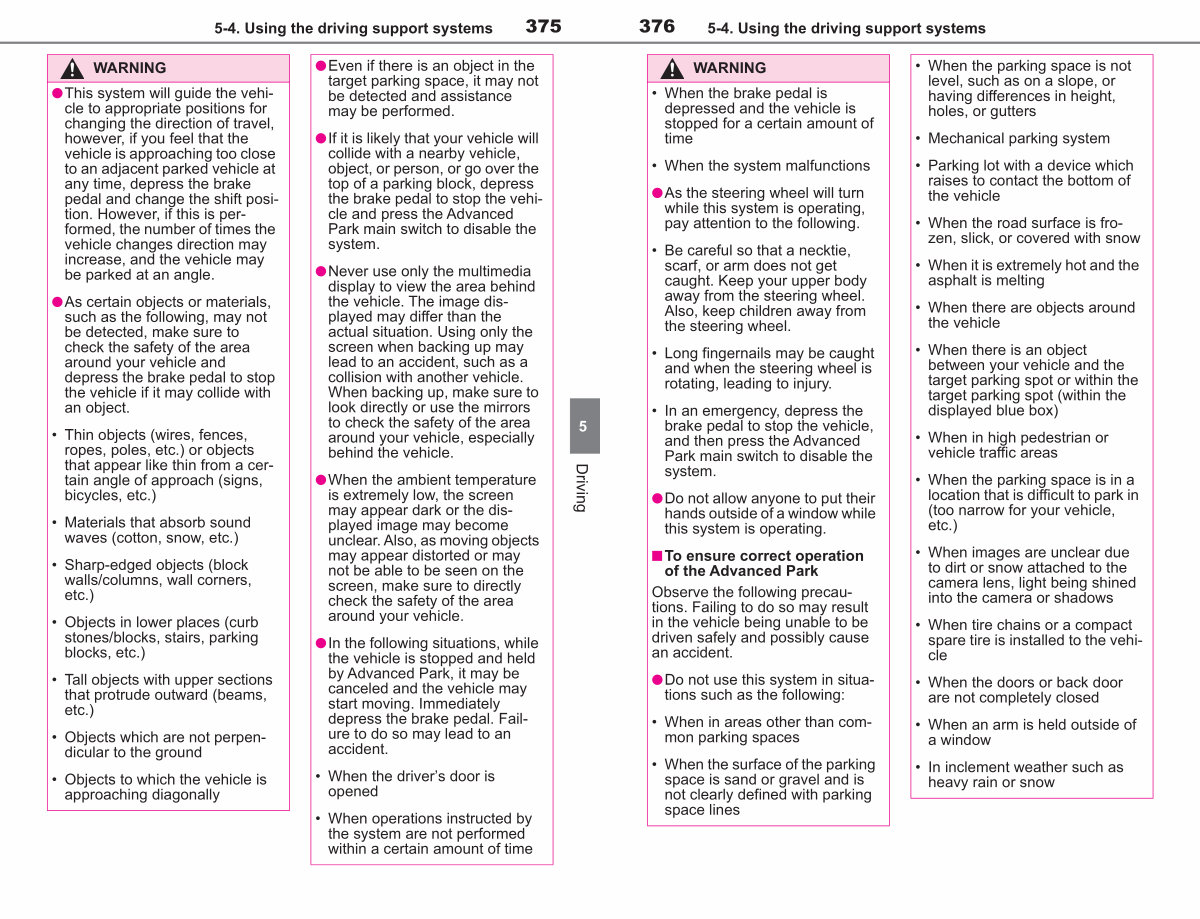

376 5-4. Using the driving support systems
WARNING
• When the brake pedal is depressed and the vehicle is stopped for a certain amount of time
• When the system malfunctions
●As the steering wheel will turn
while this system is operating, pay attention to the following.
• Be careful so that a necktie, scarf, or arm does not get caught. Keep your upper body away from the steering wheel.
Also, keep children away from the steering wheel.
• Long fingernails may be caught and when the steering wheel is rotating, leading to injury.
• In an emergency, depress the brake pedal to stop the vehicle, and then press the Advanced Park main switch to disable the system.
●Do not allow anyone to put their hands outside of a window while this system is operating.
■ To ensure correct operation of the Advanced Park
Observe the following precautions. Failing to do so may result in the vehicle being unable to be
driven safely and possibly cause an accident.
●Do not use this system in situations such as the following:
• When in areas other than common parking spaces
• When the surface of the parking space is sand or gravel and is not clearly defined with parking space lines
• When the parking space is not level, such as on a slope, or having differences in height, holes, or gutters
• Mechanical parking system
• Parking lot with a device which raises to contact the bottom of
the vehicle
• When the road surface is frozen, slick, or covered with snow
• When it is extremely hot and the asphalt is melting
• When there are objects around the vehicle
• When there is an object between your vehicle and the target parking spot or within the
target parking spot( within the displayed blue box)
• When in high pedestrian or vehicle traffic areas
• When the parking space is in a
location that is difficult to park in( too narrow for your vehicle, etc.)
• When images are unclear due
to dirt or snow attached to the camera lens, light being shined into the camera or shadows
• When tire chains or a compact
spare tire is installed to the vehicle
• When the doors or back door are not completely closed
• When an arm is held outside of a window
• In inclement weather such as heavy rain or snow
