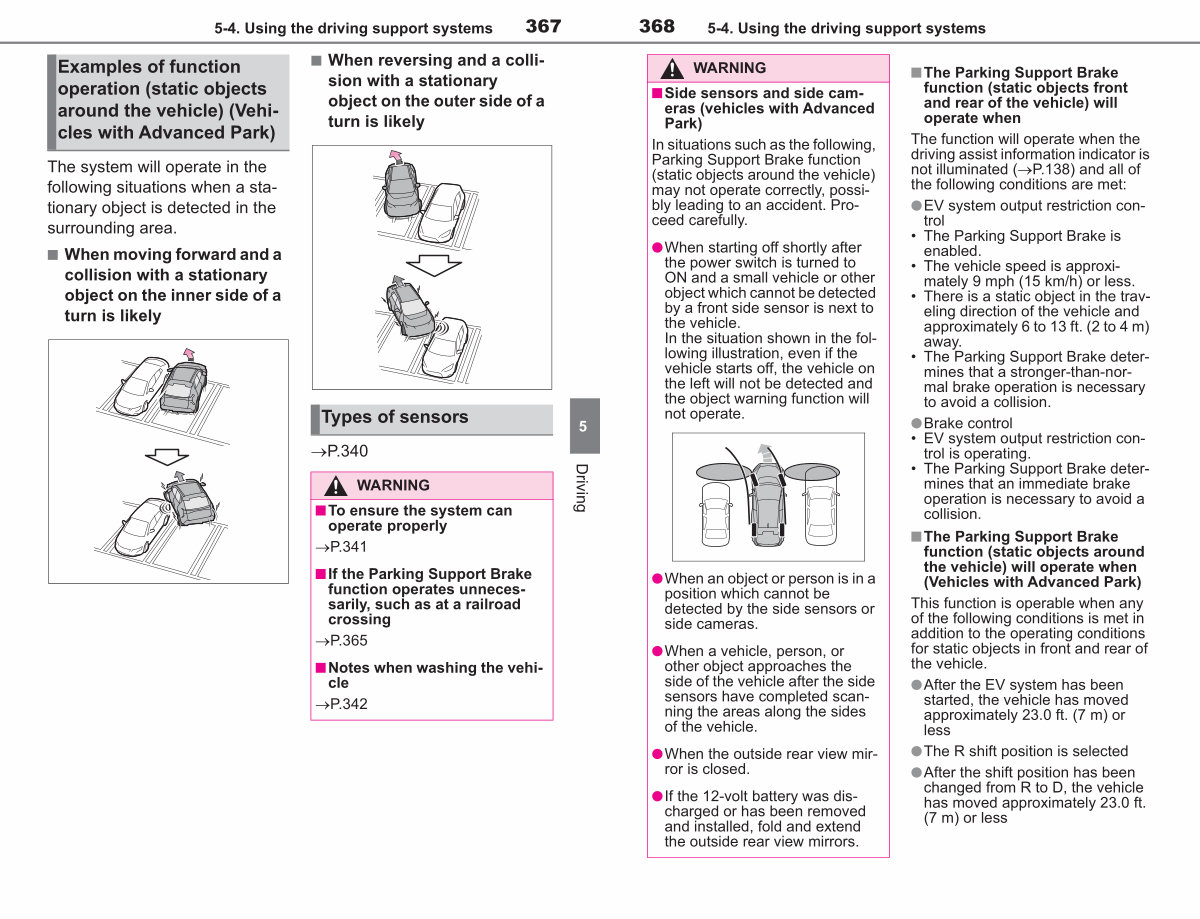

368 5-4. Using the driving support systems
WARNING
■ Side sensors and side cameras( vehicles with Advanced Park)
In situations such as the following, Parking Support Brake function( static objects around the vehicle)
may not operate correctly, possibly leading to an accident. Proceed carefully.
●When starting off shortly after the power switch is turned to ON and a small vehicle or other
object which cannot be detected by a front side sensor is next to the vehicle.
In the situation shown in the following illustration, even if the vehicle starts off, the vehicle on the left will not be detected and the object warning function will not operate.
●When an object or person is in a position which cannot be
detected by the side sensors or side cameras.
●When a vehicle, person, or other object approaches the
side of the vehicle after the side sensors have completed scanning the areas along the sides of the vehicle.
●When the outside rear view mirror is closed.
●If the 12-volt battery was discharged or has been removed
and installed, fold and extend the outside rear view mirrors.
■ The Parking Support Brake function( static objects front and rear of the vehicle) will operate when
The function will operate when the driving assist information indicator is not illuminated( �P. 138) and all of the following conditions are met:
● EV system output restriction control
• The Parking Support Brake is enabled.
• The vehicle speed is approximately 9 mph( 15 km / h) or less.
• There is a static object in the traveling direction of the vehicle and
approximately 6 to 13 ft.( 2 to 4 m) away.
• The Parking Support Brake determines that a stronger-than-normal brake operation is necessary to avoid a collision.
● Brake control
• EV system output restriction control is operating.
• The Parking Support Brake determines that an immediate brake
operation is necessary to avoid a collision.
■ The Parking Support Brake function( static objects around
the vehicle) will operate when( Vehicles with Advanced Park)
This function is operable when any of the following conditions is met in addition to the operating conditions
for static objects in front and rear of the vehicle.
●After the EV system has been started, the vehicle has moved approximately 23.0 ft.( 7 m) or less
●The R shift position is selected
●After the shift position has been changed from R to D, the vehicle has moved approximately 23.0 ft.( 7 m) or less
