364 5-4. Using the driving support systems

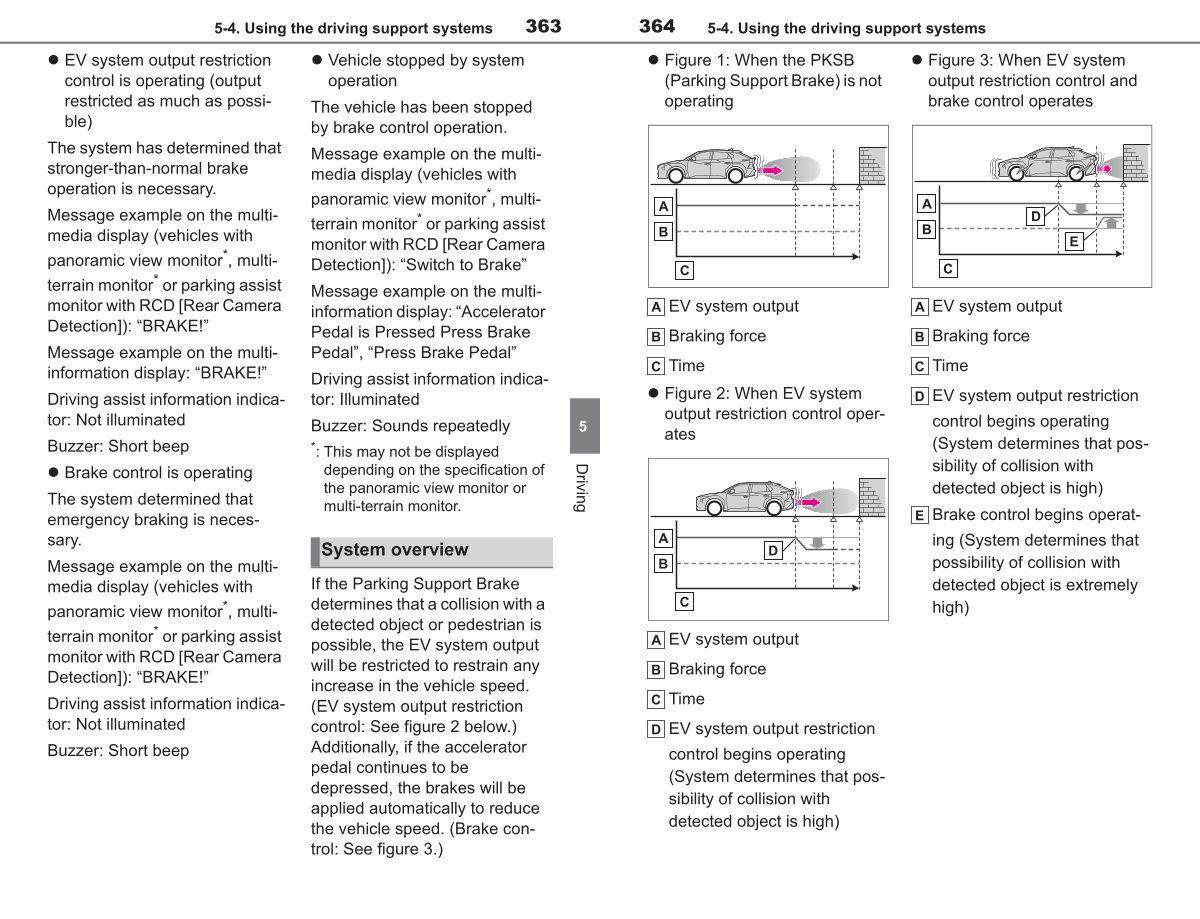

• Figure 1: When the PKSB( Parking Support Brake) is not operating
• Figure 3: When EV system output restriction control and brake control operates
EV system output Braking force Time
• Figure 2: When EV system output restriction control operates
EV system output Braking force Time EV system output restriction control begins operating( System determines that possibility of collision with detected object is high) Brake control begins operating( System determines that possibility of collision with detected object is extremely high)
EV system output Braking force Time EV system output restriction control begins operating( System determines that possibility of collision with detected object is high)
