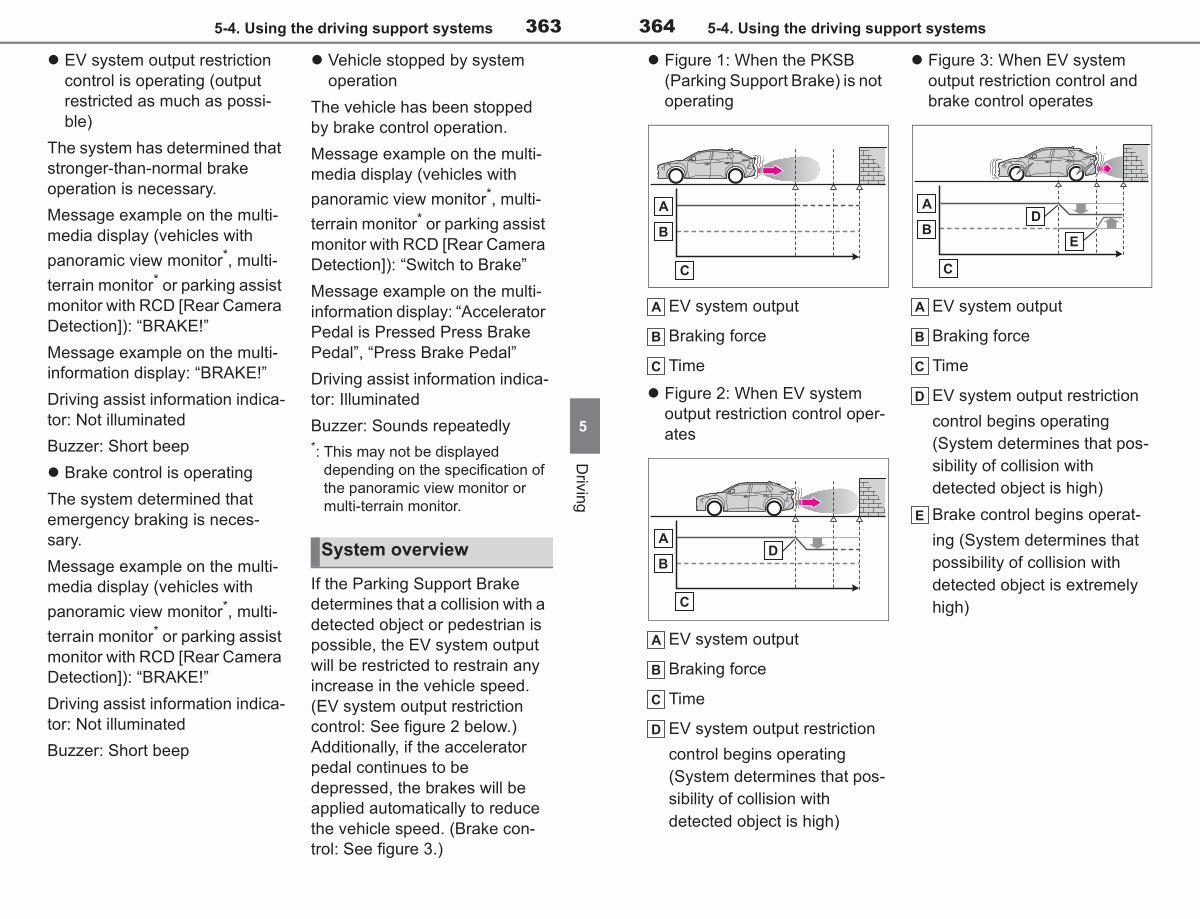

5-4. Using the driving support systems
363
• EV system output restriction control is operating( output restricted as much as possible)
The system has determined that stronger-than-normal brake operation is necessary.
Message example on the multimedia display( vehicles with
panoramic view monitor *, multiterrain monitor * or parking assist monitor with RCD [ Rear Camera Detection ]):“ BRAKE!”
Message example on the multiinformation display:“ BRAKE!”
Driving assist information indicator: Not illuminated
Buzzer: Short beep
• Brake control is operating
The system determined that emergency braking is necessary.
Message example on the multimedia display( vehicles with
panoramic view monitor *, multiterrain monitor * or parking assist monitor with RCD [ Rear Camera Detection ]):“ BRAKE!”
Driving assist information indicator: Not illuminated
Buzzer: Short beep
• Vehicle stopped by system operation
The vehicle has been stopped by brake control operation.
Message example on the multimedia display( vehicles with
panoramic view monitor *, multiterrain monitor * or parking assist monitor with RCD [ Rear Camera Detection ]):“ Switch to Brake”
Message example on the multiinformation display:“ Accelerator Pedal is Pressed Press Brake Pedal”,“ Press Brake Pedal”
Driving assist information indicator: Illuminated
Buzzer: Sounds repeatedly *: This may not be displayed
depending on the specification of the panoramic view monitor or multi-terrain monitor.
System overview
If the Parking Support Brake determines that a collision with a detected object or pedestrian is possible, the EV system output will be restricted to restrain any increase in the vehicle speed.( EV system output restriction control: See figure 2 below.) Additionally, if the accelerator pedal continues to be depressed, the brakes will be applied automatically to reduce the vehicle speed.( Brake control: See figure 3.)
