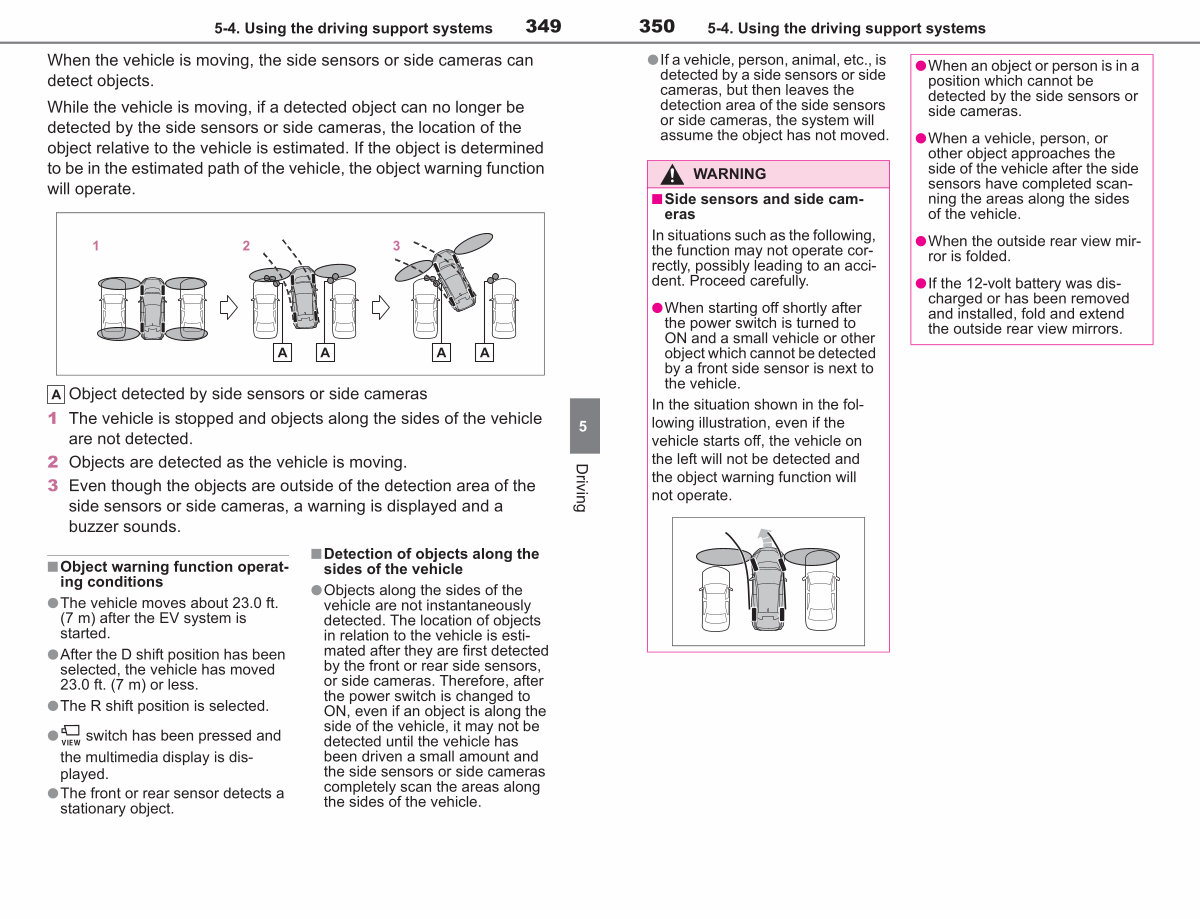

5-4. Using the driving support systems
349
When the vehicle is moving, the side sensors or side cameras can detect objects.
While the vehicle is moving, if a detected object can no longer be detected by the side sensors or side cameras, the location of the object relative to the vehicle is estimated. If the object is determined to be in the estimated path of the vehicle, the object warning function will operate.
Object detected by side sensors or side cameras
1 The vehicle is stopped and objects along the sides of the vehicle are not detected. 2 Objects are detected as the vehicle is moving. 3 Even though the objects are outside of the detection area of the side sensors or side cameras, a warning is displayed and a buzzer sounds.
■ Object warning function operating conditions
●The vehicle moves about 23.0 ft.( 7 m) after the EV system is
started.
●After the D shift position has been selected, the vehicle has moved 23.0 ft.( 7 m) or less.
●The R shift position is selected.
● switch has been pressed and
the multimedia display is displayed.
●The front or rear sensor detects a stationary object.
■ Detection of objects along the sides of the vehicle
●Objects along the sides of the vehicle are not instantaneously detected. The location of objects in relation to the vehicle is estimated after they are first detected by the front or rear side sensors, or side cameras. Therefore, after
the power switch is changed to ON, even if an object is along the side of the vehicle, it may not be
detected until the vehicle has been driven a small amount and the side sensors or side cameras
completely scan the areas along the sides of the vehicle.
5
Driving
