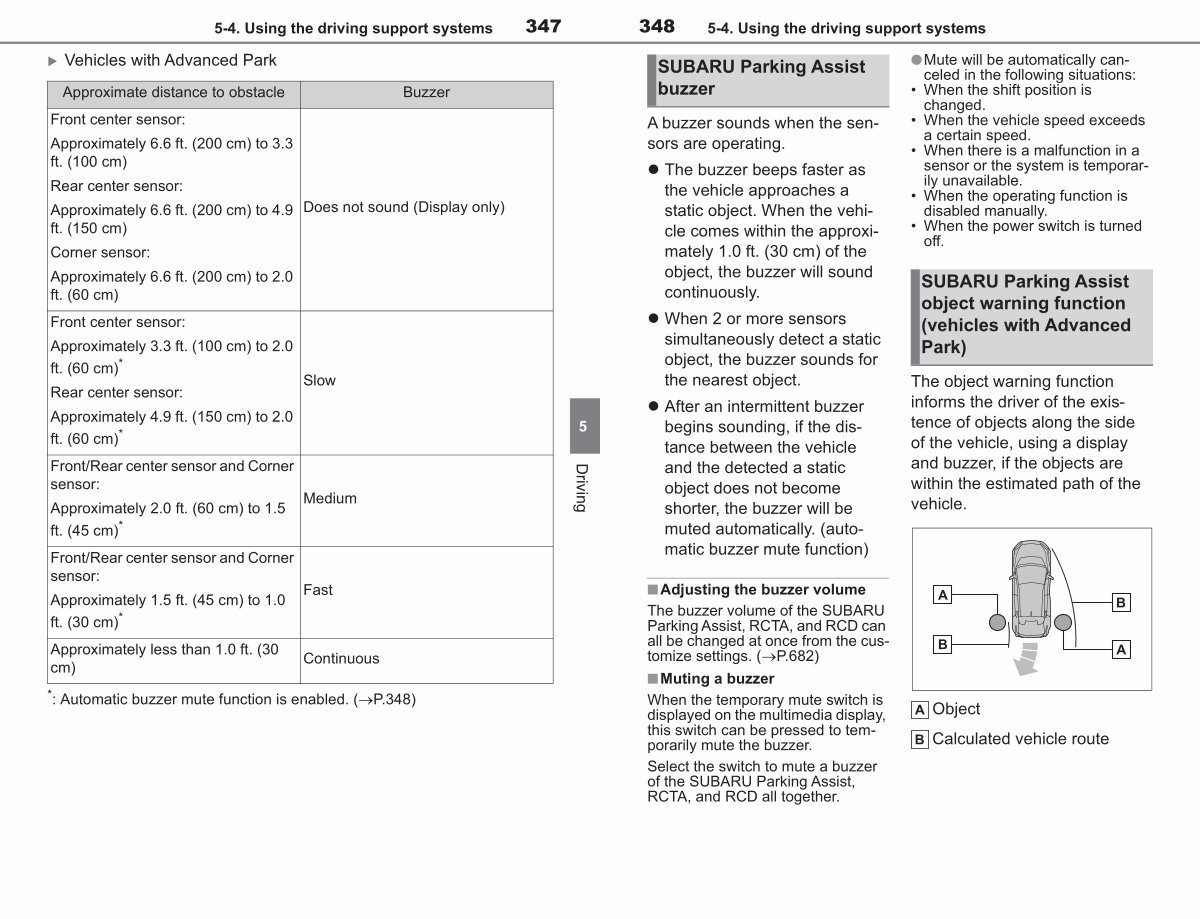

348 5-4. Using the driving support systems
SUBARU Parking Assist buzzer
A buzzer sounds when the sensors are operating.
• The buzzer beeps faster as the vehicle approaches a static object. When the vehicle comes within the approximately 1.0 ft.( 30 cm) of the object, the buzzer will sound continuously.
• When 2 or more sensors simultaneously detect a static object, the buzzer sounds for the nearest object.
• After an intermittent buzzer begins sounding, if the distance between the vehicle and the detected a static object does not become shorter, the buzzer will be muted automatically.( automatic buzzer mute function)
■ Adjusting the buzzer volume
The buzzer volume of the SUBARU
Parking Assist, RCTA, and RCD can all be changed at once from the customize settings.( �P. 682)
■ Muting a buzzer
When the temporary mute switch is displayed on the multimedia display,
this switch can be pressed to temporarily mute the buzzer.
Select the switch to mute a buzzer of the SUBARU Parking Assist, RCTA, and RCD all together.
● Mute will be automatically canceled in the following situations:
• When the shift position is changed.
• When the vehicle speed exceeds a certain speed.
• When there is a malfunction in a sensor or the system is temporarily unavailable.
• When the operating function is disabled manually.
• When the power switch is turned
off.
SUBARU Parking Assist object warning function( vehicles with Advanced Park)
The object warning function informs the driver of the existence of objects along the side of the vehicle, using a display and buzzer, if the objects are within the estimated path of the vehicle.
Object Calculated vehicle route
