5-4. Using the driving support systems
267
●When the driver’ s face is outside of the detection range of the driver monitor camera, such as when leaned forward or when their head is outside of the window
●When the driver monitor camera is being blocked by the steering wheel, a hand holding the steering
wheel, an arm, etc.
●When the driver is wearing a hat
●When the driver is wearing an eyepatch
●When the driver is wearing eyeglasses or sunglasses that do not
easily transmit infrared rays
●When the driver is wearing contact lenses
●When the driver is wearing a face mask
●When the driver is laughing or the driver’ s eyes are only slightly open
●When the driver’ s eyes, nose,
mouth, or shape of their face is blocked
●When the driver is wearing makeup which makes it difficult to detect their eyes, nose, mouth, or shape of their face
●When the driver’ s eyes are
blocked by the frame of eyeglasses, sunglasses, hair, etc.
●When there is a device inside the vehicle that radiates near infrared rays, such as a non-genuine
driver monitoring system.
■ Certification �P. 732

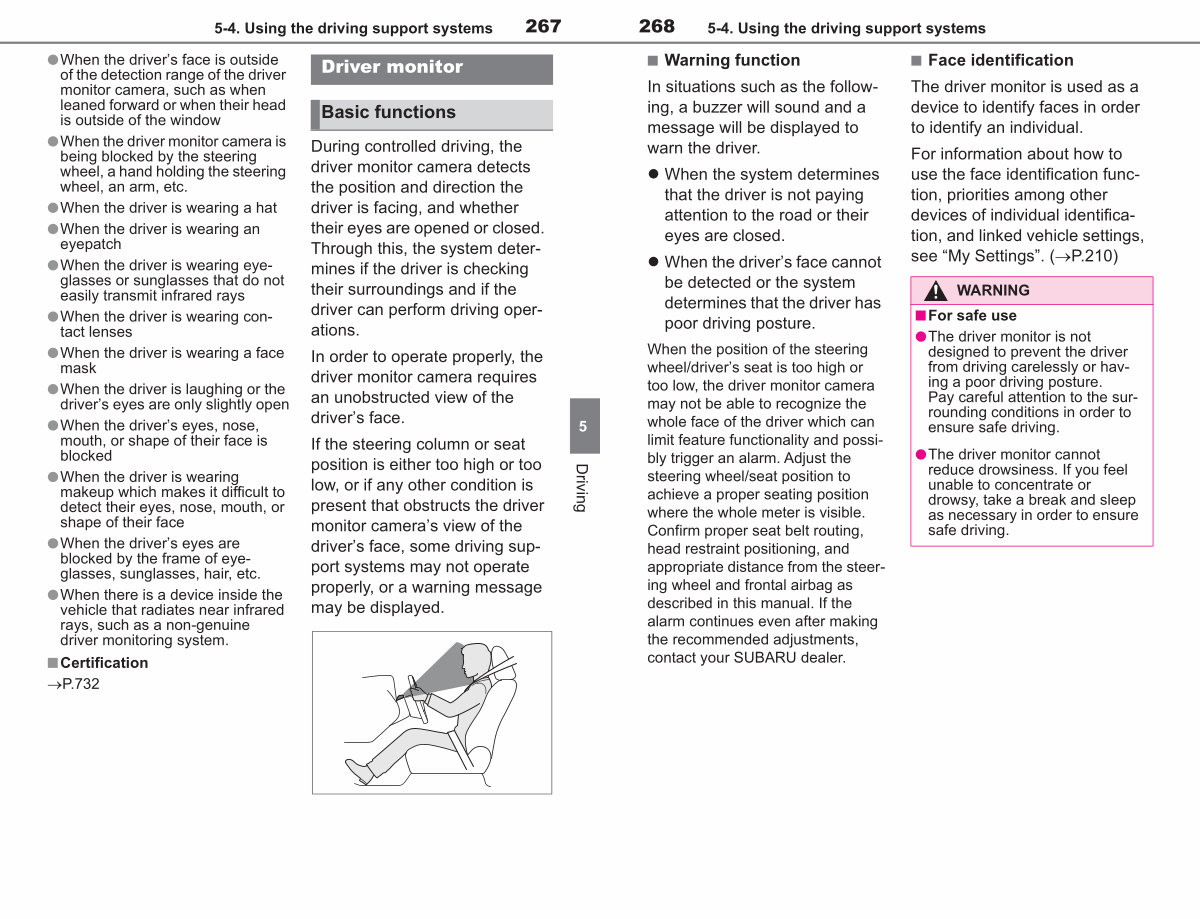

Driver monitor
Basic functions
During controlled driving, the driver monitor camera detects the position and direction the driver is facing, and whether their eyes are opened or closed. Through this, the system determines if the driver is checking their surroundings and if the driver can perform driving operations.
In order to operate properly, the driver monitor camera requires an unobstructed view of the driver’ s face.
If the steering column or seat position is either too high or too low, or if any other condition is present that obstructs the driver monitor camera’ s view of the driver’ s face, some driving support systems may not operate properly, or a warning message may be displayed.
5
Driving
