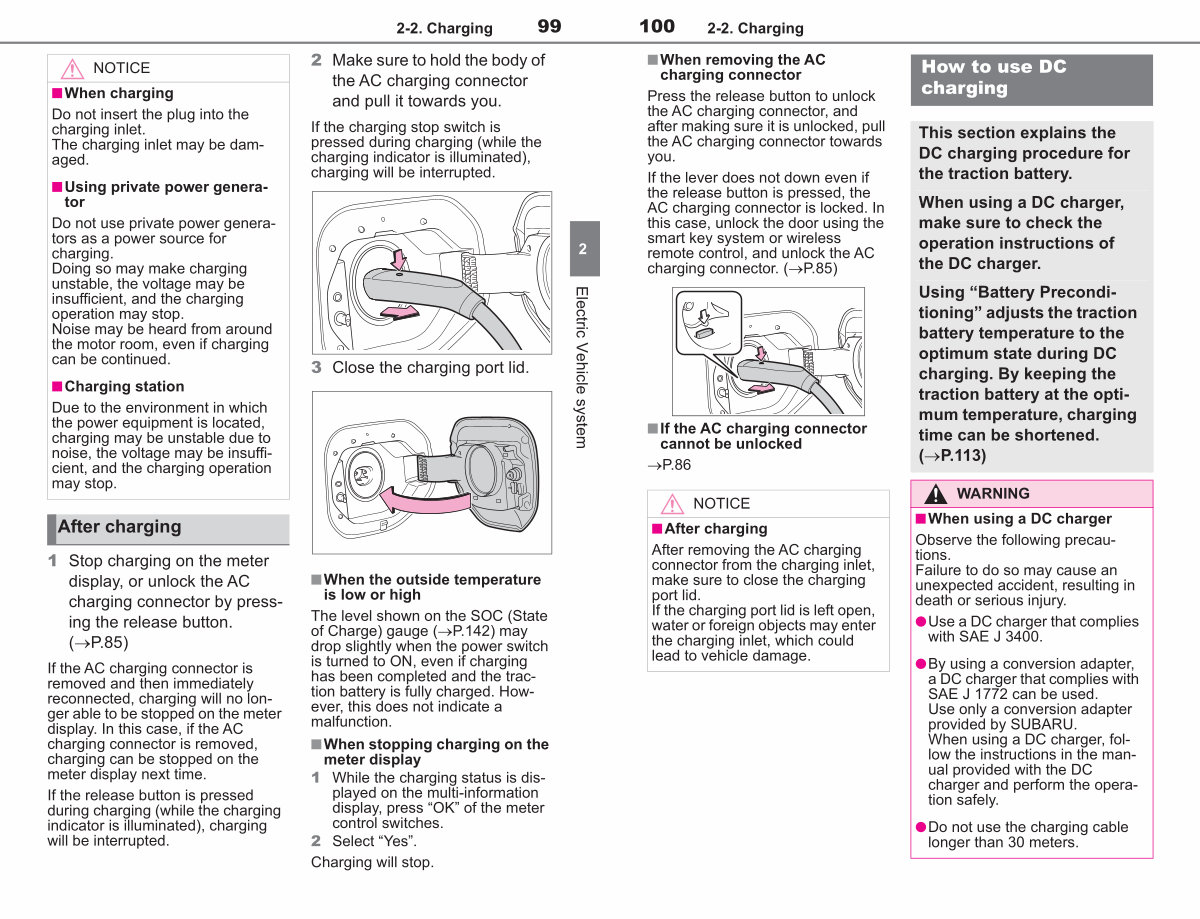

2-2. Charging
99
NOTICE
■ When charging Do not insert the plug into the charging inlet.
The charging inlet may be damaged.
■ Using private power generator
Do not use private power generators as a power source for charging. Doing so may make charging
unstable, the voltage may be insufficient, and the charging operation may stop.
Noise may be heard from around the motor room, even if charging can be continued.
■ Charging station
Due to the environment in which the power equipment is located, charging may be unstable due to noise, the voltage may be insufficient, and the charging operation may stop.
2 Make sure to hold the body of the AC charging connector and pull it towards you.
If the charging stop switch is pressed during charging( while the charging indicator is illuminated),
charging will be interrupted.
3 Close the charging port lid.
2
Electric Vehicle system
After charging
1 Stop charging on the meter display, or unlock the AC charging connector by pressing the release button.( �P. 85)
If the AC charging connector is removed and then immediately reconnected, charging will no longer able to be stopped on the meter
display. In this case, if the AC charging connector is removed, charging can be stopped on the meter display next time.
If the release button is pressed during charging( while the charging indicator is illuminated), charging will be interrupted.
■ When the outside temperature is low or high
The level shown on the SOC( State of Charge) gauge( �P. 142) may
drop slightly when the power switch is turned to ON, even if charging has been completed and the traction battery is fully charged. However, this does not indicate a malfunction.
■ When stopping charging on the meter display
1 While the charging status is displayed on the multi-information display, press“ OK” of the meter
control switches.
2 Select“ Yes”. Charging will stop.
