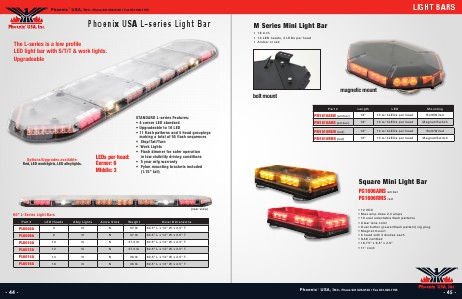

Phoenix USA L-series Light Bar
The L-series is a low profile
LED light bar with S/T/T & work lights.
Upgradeable
Options/Upgrades available:
Red, LED worklights, LED alleylights.
LEDs per head:
Corner: 6
MIddle: 3
STANDARD L-series Features:
• 4 corner LED standard
• Upgradeable to 16 LED
• 11 flash patterns and 5 head groupings
making a total of 55 flash sequences
• Stop/Tail/Turn
• Work Lights
• Flash dimmer for safer operation
in low visibility driving conditions
• 5 year mfg warranty
• Pylon mounting brackets included
(1.75” tall)
(rear view)
60” L-Series Light Bars
Part #
Alley Lights
Arrow Stick
Weight
PL6004A
4
N
N
37 lb
60.5” L x 13” W x 2.5” T
PL6008A
8
N
N
37 lb
60.5” L x 13” W x 2.5” T
PL6010A
10
N
N
37.5 lb
60.5” L x 13” W x 2.5” T
PL6012A
12
N
N
37.5 lb
60.5” L x 13” W x 2.5” T
PL6014A
14
N
N
38 lb
60.5” L x 13” W x 2.5” T
PL6016A
- 44 -
LED Heads
Outer Dimensions
16
N
N
38 lb
60.5” L x 13” W x 2.5” T
