LIGHT BARS

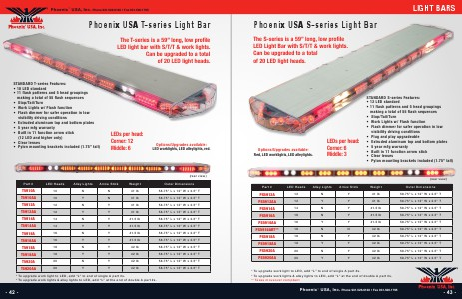

Phoenix USA S-series Light Bar
The S-series is a 59” long, low profile
LED Light Bar with S/T/T & work lights.
Can be upgraded to a total
of 20 LED light heads.
LEDs per head:
Corner: 6
Middle: 3
Options/Upgrades available:
Red, LED worklights, LED alleylights.
STANDARD S-series Features:
• 12 LED standard
• 11 flash patterns and 5 head groupings
making a total of 55 flash sequences
• Stop/Tail/Turn
• Work Lights w/ Flash function
• Flash dimmer for safer operation in low
visibility driving conditions
• Plug and play upgradeable
• Extruded aluminum top and bottom plates
• 5 year mfg warranty
• Built in 11 function arrow stick
• Clear lenses
• Pylon mounting brackets included (1.75” tall)
(rear view)
Part #
LED Heads
Alley Lights
Arrow Stick
Weight
Outer Dimensions
PS5912A
12
N
Y
41 lb
58.75” L x 12” W x 2.5” T
PS5912AA
12
Y
Y
41 lb
58.75” L x 12” W x 2.5” T
PS5914A
14
N
Y
41.5 lb
58.75” L x 12” W x 2.5” T
PS5916A
16
N
Y
41.5 lb
58.75” L x 12” W x 2.5” T
PS5916AA
16
Y
Y
41.5 lb
58.75” L x 12” W x 2.5” T
PS5916ART**
16
N
N
42 lb
58.75” L x 12” W x 2.5” T
PS5918A
18
N
Y
42 lb
58.75” L x 12” W x 2.5” T
PS5918AA
18
Y
Y
42 lb
58.75” L x 12” W x 2.5” T
PS5920A
20
N
Y
42 lb
58.75” L x 12” W x 2.5” T
PS5920AA
20
Y
Y
42 lb
58.75” L x 12” W x 2.5” T
* To upgrade work light to LED, add “L” to end of single A part #s.
* T
