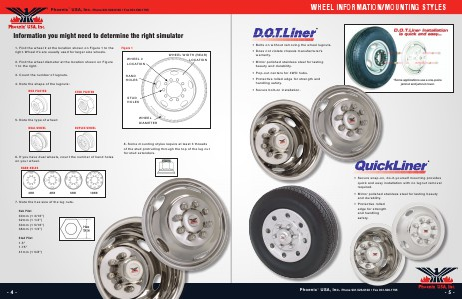

Information you might need to determine the right simulator
1. Find the wheel # at the location shown on Figure 1 to the
right. Wheel #’s are usually used for larger size wheels.
2. Find the wheel diameter at the location shown on Figure
1 to the right.
3. Count the number of lugnuts.
Figure 1
WHEEL #
LOCATION
WHEEL WIDTH (REAR)
LOCATION
HAND
HOLES
4. Note the shape of the lugnuts:
HUB PILOTED
STUD PILOTED
STUD
HOLES
5. Note the type of wheel:
DUAL WHEEL
DUPLEX WHEEL
6. If you have dual wheels, count the number of hand holes
on your wheel.
HAND HOLES
2HH
4HH
5HH
7. Note the hex size of the lug nuts.
Hub Pilot
30mm (1 3/16”)
32mm (1 1/4”)
33mm (1 5/16”)
38mm (1 1/2”)
Stud Pilot
1.5”
1.75”
41mm (1 5/8”)
-4-
10HH
WHEEL
DIAMETER
8. Some mounting styles require at least 3 threads
of the stud protruding through the top of the lug nut
for stud extenders.
