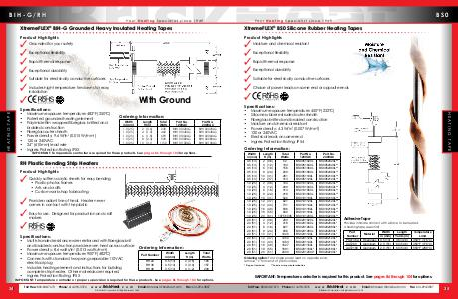

14th-Edition-BriskHeat-Product-Catalog A | Page 46

BIH-G/RH Your Heating Specialist since 1949 XtremeFLEX® BIH-G Grounded Heavy Insulated Heating Tapes Product Highlights Grounded for your safety Exceptional flexibility Rapid thermal response Exceptional durability Suitable for electrically conductive surfaces HEATING TAPE Includes high-temperature tie-downs for easy installation With Ground Specifications: • Maximum exposure temperature: 482°F (250°C) • Patented grounded heating element • Polyimide film wrapped fiberglass knitted and braided construction • Fiberglass outer sheath • Power density: 9.6 W/in2 (0.015 W/mm2) • 120 or 240VAC • 24” (610mm) lead wire • Ingress Protection Rating: IP5X Ordering Information: Width in (mm) 1.0 (25) 1.0 (25) 1.0 (25) 1.0 (25) 1.0 (25) Length ft (m) 2 (0.6) 4 (1.2) 6 (1.8) 8 (2.4) 10 (3.1) Total Watts 230 460 690 920 1150 Part No. 120VAC BIH101020LG BIH101040LG BIH101060LG BIH101080LG BIH101100LG Part No. 240VAC BIH102020LG BIH102040LG BIH102060LG BIH102080LG BIH102100LG IMPORTANT: Temperature controller is required for these products. See pages 86 through 104 for options. RH Plastic Bending Strip Heaters Product Highlights Quickly softens acrylic sheets for easy bending • Plastic photos frames • Arts and crafts • Custom work shop fabricating Provides radiant line of heat. Heater never comes in contact with the plastic Easy-to-use. Designed for production and craft makers Specifications: • Multi-stranded resistance wire reinforced with fiberglass knit and braided construction provides even heat across surface • Power density: 8.6 watts/in2 (0.013 watts/mm2) • Maximum exposure temperature: 900°F (482°C) • Connects with standard two-prong separable 110VAC electrical plug • Includes heating element and instructions for building complete strip heater. Other materials are required. • Ingress Protection Rating: IP5X Ordering Information: Part Number Width in (mm) Length ft (m) Total Watts RH24 RH36 RH48 0.5 (13) 0.5 (13) 0.5 (13) 2 (0.6) 3 (0.9) 4 (1.2) 105 157 209 IMPORTANT: Temperature controller or proper supervision is required for these products. See pages 86 through 104 for options. 34 Toll Free: 800-848-7673 Phone: 614-294-3376 w w w .BriskHeat. c o m Email: bhtsales1@briskheat.com Fax: 614-294-3807 © BriskHeat Corporation. All Rights Reserved. 16-06
