HOT BONDERS

Your Heating Specialist since 1949

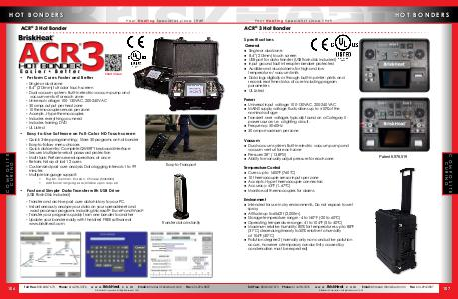

ACR® 3 Hot Bonder

E a s i e r • B e t t e r
• Perform Cures Faster and Better

Short Video

▫ Single or dual zone
▫ 8.4” (213mm) full-color touch screen
▫ Dual vacuum system: Built-in electric vacuum pump and
vacuum venturi for each zone
▫ Universal voltage: 100-130VAC, 200-240VAC
▫ 30 amps output per heat zone
▫ 10 thermocouple sensors per zone
▫ Accepts J-type thermocouples
▫ Includes everything you need
▫ Includes training DVD
▫ UL Listed

C O M P O S I T E
CURING

• Easy-to-Use Software on Full-Color HD Touchscreen
▫ Quick 3-step programming: Store 30 programs on hot bonder
▫ Easy-to-follow menu choices
▫ Quick data entry: Complete QWERTY keyboard interface
▫ Secure: Multiple levels of password protection
▫ Multi-task: Perform several operations at once
▫ Retains history of last 12 cures
▫ Customized post cure analysis: Data logging intervals 1 to 99
minutes
▫ Multiple language support:
•
•

Easy-to-Transport

English, German, Russian, Chinese (Mandarin)
Additional languages available upon request

• Fast and Simple Data Transfer with USB Drive
(USB Flash Disk Included)

▫ Transfer and archive post cure data history to your PC.
▫ Instantaneously analyze your data on your spreadsheet and
word processor programs including Microsoft® Excel® and Word®
▫ Transfer your programs quickly from one bonder to another
▫ Update your bonder easily with the latest FREE software at
www.briskheat.com
