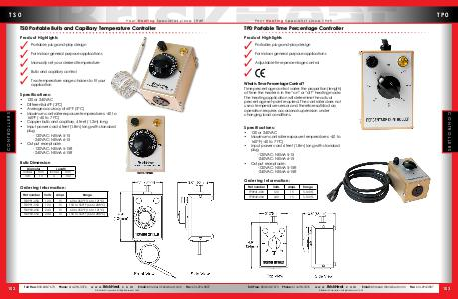

14th-Edition-BriskHeat-Product-Catalog A | Page 115

TP0

Your Heating Specialist since 1949

TP0 Portable Time Percentage Controller
Product Highlights
Portable, plug-and-play design
For indoor general purpose applications
Adjustable time percentage control

CONTROLLERS

What is Time Percentage Control?
Time percentage control varies the proportion (length)
of time the heater is in the “on” or “off” heating mode.
The heating application will determine the actual
percentage set-point required. The controller does not
use a temperature sensor and therefore satisfactory
operation requires occasional supervision under
changing load conditions.

Specifications:

• 120 or 240VAC
• Maximum controller exposure temperatures: -40 to
160°F (-40 to 71°C)
• Input power cord 6 feet (1.8m) long with standard
plug

-120VAC: NEMA 5-15
-240VAC: NEMA 6-15
• Output receptacle:

-120VAC: NEMA 5-15R

-240VAC: NEMA 6-15R

Ordering Information:
Part number

Volts

Amps

Range

TP0941-000

120

15

5-100%

TP0942-000

240

15

5-100%
