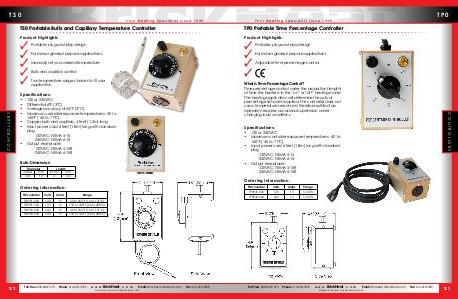

14th-Edition-BriskHeat-Product-Catalog A | Page 114

TS0

Your Heating Specialist since 1949

TS0 Portable Bulb and Capillary Temperature Controller
Product Highlights
Portable, plug-and-play design
For indoor general purpose applications
Manually set your desired temperature
Bulb and capillary control
Two temperature range choices to fit your
application

CONTROLLERS

Specifications:
•
•
•
•

120 or 240VAC
Differential 6°F (3°C)
Αverage accuracy of ±5°F (3°C)
Maximum controller exposure temperatures: -40 to
160°F (-40 to 71°C)
• Copper bulb and capillary, 4 feet (1.2m) long
• Input power cord 6 feet (1.8m) long with standard
plug

-120VAC: NEMA 5-15
-240VAC: NEMA 6-15
• Output receptacle:

-120VAC: NEMA 5-15R

-240VAC: NEMA 6-15R

Bulb Dimension
Diameter
Inches
mm
3/8
10

Length
Inches
mm
4
102

Ordering Information:

102

Part number

Volts

Amps

TS0991-250

120

15

60 to 250°F (16 to 121°C)

TS0991-550

120

15

150 to 550°F (66 to 288°C)

TS0992-250

240

15

60 to 250°F (16 to 121°C)

TS0992-550

240

15

150 to 550°F (66 to 288°C)

Toll Free: 800-848-7673

Range

Phone: [phone]

w w w .BriskHeat. c o m

Email: [e-mail] Fax: [phone]

© BriskHeat Corporation. All Rights Reserved. 16-03
