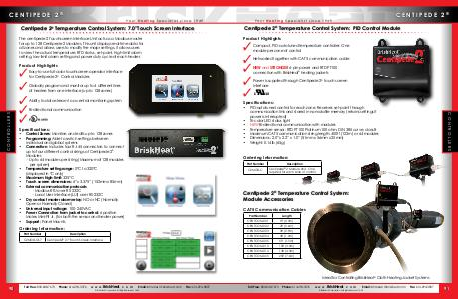

CENTIPEDE 2®

Your Heating Specialist since 1949

Centipede 2® Temperature Control System: 7.0”Touch Screen Interface
The centipede 2 Touchscreen Interface Unit acts as a Modbus master
for up to 128 Centipede 2 Modules. This unit displays real-time data for
all zones and allows users to modify the major settings. It allows users
to view the actual temperature, RTD status, set-point, high-limit alarm
setting, low-limit alarm setting and power duty cycle of each heater.

Product Highlights
Easy-to-use full-color touchscreen operator interface
for Centipede 2® Control Modules
Globally program and monitor up to 4 different lines
of heaters from one interface (up to 128 zones)
Ability to data-stream to a central monitoring system

CONTROLLERS

Bi-directional communication

Specifications:

• Control Zones: Monitors and edits up to 128 zones
• Programming: Able to switch settings between
individual and global systems
• Connection: Includes four RJ-45 connectors to connect
up to four different control strings of Centipede 2®
Modules

- Up to 64 modules per string (Maximum of128 modules
per system)
• Temperature setting range: 0°C to 320°C
(displayed in °C only)
• Maximum high-limit: 325°C
• Touch screen dimensions: 6” x 3.375” (152mm x 85mm)
• External communication protocols

- Modbus RTU over RS-232C

- Local User Interface (LUI) over RS-232C
• Dry contact master alarm relay: NO or NC (Normally
Open or Normally Closed)
• Universal input voltage: 100-240VAC
• Power Connection from jacket to control: 6 position
Molex Mini-Fit Jr. (for both the sensor and heater power)
• Support: Panel Mounts

Ordering Information:
Part Number
C2MOD-OI-7

90

Description
Centipede® 2 7”Touch Screen Interface
