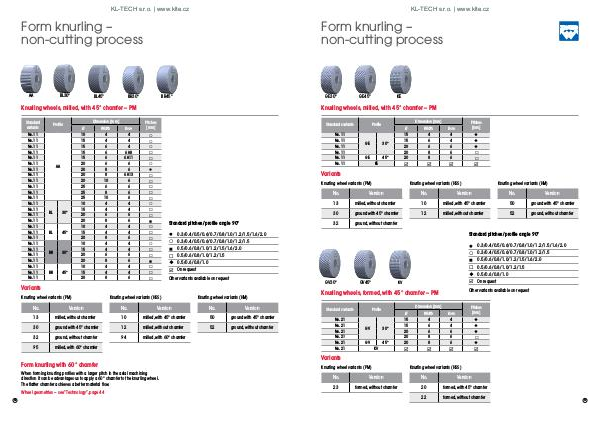

Form knurling –
non-cutting process
GE30°
GE45°
KE
Knurling wheels, milled, with 45° chamfer – PM
Standard variants
No. 11
No. 11
No. 11
No. 11
No. 11
No. 11
Dimension [mm]
Profile
GE 30°
GE 45°
KE
Pitches
[mm]
Ø Width Bore 15
15
20
20
20 4
6
6
8
8 4
4
6
6
6 


   


Variants
Knurling wheel variants (HSS)
Knurling wheel variants (PM)
Knurling wheel variants (HM)
No. Version No. Version No. Version
13 milled, without chamfer 10 milled, with 45° chamfer 50 ground with 45° chamfer
30 ground with 45° chamfer 12 milled, without chamfer 52 ground, without chamfer
32 ground, without chamfer
Standard pitches / profile angle 90°

0.3 / 0.4 / 0.5 / 0.6 / 0.7 / 0.8 / 1.0 / 1.2 / 1.5 / 1.6 / 2.0
 0.3 / 0.4 / 0.5 / 0.6 / 0.7 / 0.8 / 1.0 / 1.2 / 1.5
 0.5 / 0.6 / 0.8 / 1.0 / 1.2 / 1.5 / 1.6 / 2.0
 0.5 / 0.6 / 0.8 / 1.0 / 1.2 / 1.5
 0.5 / 0.6 / 0.8 / 1.0
GV30°
 On request
KV
GV45°
Other variants available on request
Knurling wheels, formed, with 45° chamfer – PM
Standard variants
No. 21
No. 21
No. 21
No. 21
No. 21
No. 21
Dimension [mm]
Profile
GV 30°
GV 45°
KV
Pitches
[mm]
Ø Width Bore 15
15
20
20
20 4
6
6
8
8 4
4
6
6
6 

   



Variants
Knurling wheel variants (PM)
Knurling wheel variants (HSS)
No. Version No. Version
23 formed, without chamfer 20 formed, with 45° chamfer
22 formed, without chamfer
