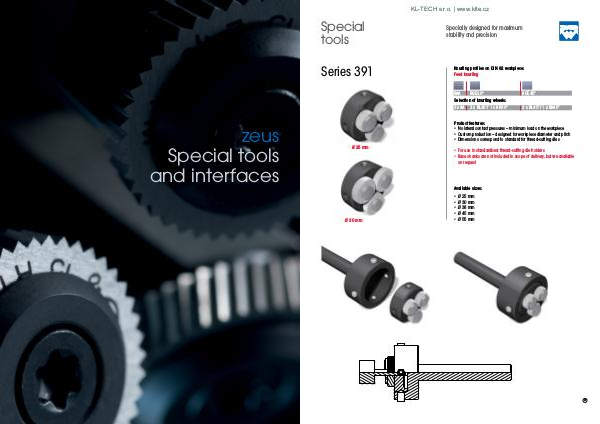

Special
tools
Series 391
Specially designed for maximum
stability and precision
Knurling profiles on DIN 82 workpiece:
Feed knurling
RAA
RGE30°
RGE45°
Selection of knurling wheels:
3 x AA
2 x BL30°/ 1 x BR30°
2 x BL45°/ 1 x BR45°
Product features:
• No lateral contact pressures – minimum load on the workpiece
• Custom production – designed for workpiece diameter and pitch
• Dimensions correspond to standard for thread-cutting dies
Ø 25 mm
• For use in standardised thread-cutting die holders
• Base shanks are not included in scope of delivery, but are available
on request
Available sizes:
Ø 30 mm
• Ø 25 mm
• Ø 30 mm
• Ø 38 mm
• Ø 45 mm
• Ø 55 mm
