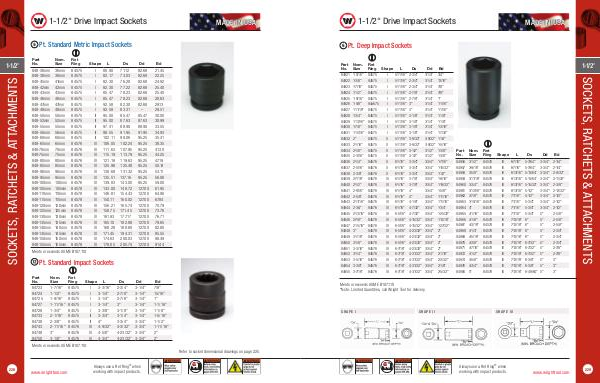

Wright Tool Wright Tool catalog | Page 228

1-1/2" Drive Impact Sockets
MADE IN USA
Pt. Standard Metric Impact Sockets
1-1/2"
Part
No. Nom.
Size Ret
Ring Shape L Ds
848-36mm
848-38mm
848-41mm
848-42mm
848-43mm
848-46mm
848-47mm
848-48mm
848-50mm
848-52mm
848-55mm
848-56mm
848-60mm
848-65mm
848-70mm
848-75mm
848-80mm
848-85mm
848-90mm
848-95mm
848-100mm
848-105mm
848-110mm
848-115mm
848-120mm
848-125mm
848-130mm
848-135mm
848-140mm
848-145mm
848-150mm
848-155mm 36mm
38mm
41mm
42mm
43mm
46mm
47mm
48mm
50mm
52mm
55mm
56mm
60mm
65mm
70mm
75mm
80mm
85mm
90mm
95mm
100mm
105mm
110mm
115mm
120mm
125mm
130mm
135mm
140mm
145mm
150mm
155mm 84575
84575
84575
84575
84575
84575
84575
84575
84575
84575
84575
84575
84575
84576
84576
84576
84576
84576
84576
84576
84576
84578
84578
84578
84578
84578
84578
84578
84578
84578
84578
84578 I
I
I
I
I
I
I
I
II
II
II
II
II
III
III
III
III
III
III
III
III
III
III
III
III
III
III
III
III
III
III
III 80.90
82.17
82.30
82.30
85.47
85.47
92.58
92.58
95.00
95.00
97.41
98.55
102.11
106.05
111.63
115.19
121.16
125.98
130.68
135.51
139.83
143.00
146.81
150.11
156.21
158.75
161.93
165.10
168.28
171.45
174.63
178.05 71.12
73.03
76.20
77.22
78.23
78.23
82.30
83.31
85.47
87.63
88.90
91.95
99.06
102.24
107.95
113.79
119.63
125.48
131.32
137.16
143.00
148.72
154.43
160.02
165.74
171.45
177.17
182.88
188.60
194.31
200.03
205.74
Dd
82.68
82.68
82.68
82.68
82.68
82.68
82.68
–
85.47
87.63
88.90
91.95
95.25
95.25
95.25
95.25
95.25
95.25
95.25
95.25
95.25
127.00
127.00
127.00
127.00
127.00
127.00
127.00
127.00
127.00
127.00
127.00
Bd
21.45
22.25
24.92
25.40
25.40
28.63
29.13
29.51
30.00
30.99
33.55
34.93
35.41
38.35
41.30
44.25
47.19
50.14
53.11
56.06
59.00
61.95
64.90
67.84
70.79
73.76
76.71
79.65
82.60
85.55
88.49
91.44
Meets or exceeds ASME B107.110
Pt. Standard Impact Sockets
Part
No. Nom.
Size Ret
Ring Shape L
84723
84724
84725
84727
84728
84733
84738
84743
84748
84750 1-7/16"
1-1/2"
1-9/16"
1-11/16"
1-3/4"
2-1/16"
2-3/8"
2-11/16"
3"
3-1/8" 84575
84575
84575
84575
84575
84575
84575
84576
84576
84576 I
I
I
I
I
II
II
III
III
III 3-3/16"
3-1/4"
3-1/4"
3-1/4"
3-3/8"
3-3/4"
4"
4-9/32"
4-5/8"
4-3/4"
Ds
2-3/4"
2-7/8"
2-7/8"
3"
3-1/8"
3-1/4"
3-3/4"
4-3/32"
4-23/32"
4-23/32"
Dd
3-1/4"
3-1/4"
3-1/4"
3-1/4"
3-1/4"
3-1/4"
3-3/4"
3-3/4"
3-3/4"
3-3/4"
Bd
7/8"
15/16"
1"
1-1/16"
1-1/8"
1-5/16"
1-1/2"
1-11/16"
2"
2"
Meets or exceeds ASME B107.110
Refer to socket dimensional drawings on page 225.
228
www.wrighttool.com
Always use a Ret Ring ® when
working with impact products.
