PEDALBOARDS
Before Helix Input Guitar

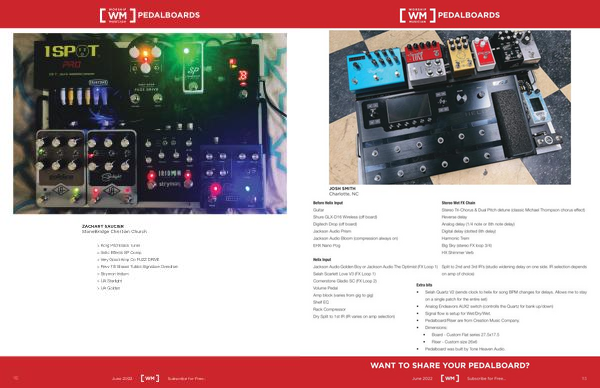

JOSH SMITH Charlotte , NC
Shure GLX-D16 Wireless ( off board ) Digitech Drop ( off board ) Jackson Audio Prism Jackson Audio Bloom ( compression always on ) EHX Nano Pog
Helix Input Jackson Audio Golden Boy or Jackson Audio The Optimist ( FX Loop 1 ) Selah Scarlett Love V3 ( FX Loop 1 ) Cornerstone Gladio SC ( FX Loop 2 ) Volume Pedal Amp block ( varies from gig to gig ) Shelf EQ Rack Compressor
Dry Split to 1st IR ( IR varies on amp selection )
Extra bits
Stereo Wet FX Chain Stereo Tri-Chorus & Dual Pitch detune ( classic Michael Thompson chorus effect ) Reverse delay Analog delay ( 1 / 4 note or 8th note delay ) Digital delay ( dotted 8th delay ) Harmonic Trem Big Sky ( stereo FX loop 3 / 4 ) HX Shimmer Verb
Split to 2nd and 3rd IR ’ s ( studio widening delay on one side . IR selection depends on amp of choice )
• Selah Quartz V2 ( sends clock to helix for song BPM changes for delays . Allows me to stay on a single patch for the entire set )
• Analog Endeavors AUX2 switch ( controlls the Quartz for bank up / down )
• Signal flow is setup for Wet / Dry / Wet .
• Pedalboard / Riser are from Creation Music Company .
• Dimensions :
• Board - Custom Flat series 27.5x17.5
• Riser - Custom size 26x6
• Pedalboard was built by Tone Heaven Audio .
