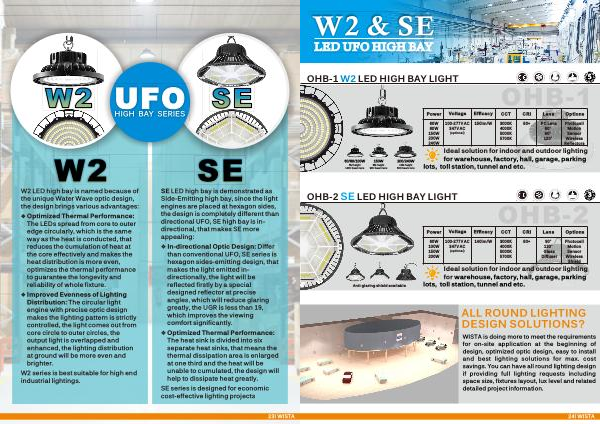

WISTA LIGHTING CATALOG 2020 EDITION | Page 27

COOL RATING RATING LOCATION LOCATION W2 & SE LED UFO HIGH BAY OHB-1 W2 LED HIGH BAY LIGHT IP 65 WET OHB-1 Power Voltage Efficacy CCT CRI Lens Options 60/80/100W 6M height 120D beam lens 150W 8M height 90D beam lens 200/240W 10M height 60D beam lens 60W 80W 150W 200W 240W 100-277V AC 347V AC (optional) 150lm/W 3000K 4000K 5000K 5700K 80+ PC Lens 60° 90° 120° Photocell Motion Sensor Wireless Reflectors Ideal solution for indoor and outdoor lighting for warehouse, factory, hall, garage, parking lots, toll station, tunnel and etc. OHB-2 SE LED HIGH BAY LIGHT IP 65 WET 3 COOL OHB-2 Power Voltage Efficacy CCT CRI Lens Options Anti-glaring shield available 60W 100W 150W 200W 100-277V AC 347V AC (optional) 140lm/W 3000K 4000K 5000K 5700K 80+ 90° 120° Glass Diffuser Photocell Motion Sensor Wireless Shield Ideal solution for indoor and outdoor lighting for warehouse, factory, hall, garage, parking lots, toll station, tunnel and etc. ALL ROUND LIGHTING DESIGN SOLUTIONS? WISTA is doing more to meet the requirements for on-site application at the beginning of design, optimized optic design, easy to install and best lighting solutions for max. cost savings. You can have all round lighting design if providing full lighting requests including space size, fixtures layout, lux level and related detailed project information. 24 | WISTA
