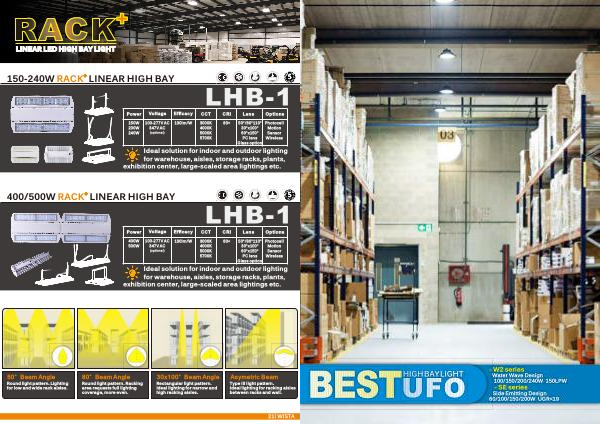

WISTA LIGHTING CATALOG 2020 EDITION | Page 24

COOL COOL RATING RATING LOCATION LOCATION + LINEAR LED HIGH BAY LIGHT 150-240W RACK + LINEAR HIGH BAY IP 67 LHB-1 WET Power Voltage Efficacy CCT CRI Lens Options 150W 200W 240W 100-277V AC 347V AC (optional) 130lm/W 3000K 4000K 5000K 5700K 80+ 50°/80°110° 30°x100° 60°x150° PC lens Glass option Photocell Motion Sensor Wireless Ideal solution for indoor and outdoor lighting for warehouse, aisles, storage racks, plants, exhibition center, large-scaled area lightings etc. 400/500W RACK + LINEAR HIGH BAY IP 67 LHB-1 WET Power Voltage Efficacy CCT CRI Lens Options 400W 500W 100-277V AC 347V AC (optional) 130lm/W 3000K 4000K 5000K 5700K 80+ 50°/80°110° 30°x100° 60°x150° PC lens Glass option Photocell Motion Sensor Wireless Ideal solution for indoor and outdoor lighting for warehouse, aisles, storage racks, plants, exhibition center, large-scaled area lightings etc. 50°Beam Angle Round light pattern. Lighting for low and wide rack aisles. 80°Beam Angle Round light pattern. Racking area requests full lighting coverage, more even. 30x100°Beam Angle Rectangular light pattern. Ideal lighting for narrow and high racking aisles. Asymetric Beam Type III light pattern. Ideal lighting for racking aisles between racks and wall. 21 | WISTA
