8.3 CodeMeter License Central Desktop
With CodeMeter License Central Desktop we provide you a complete package containing not only the core but
also complete web applications allowing you to access all functions of CodeMeter License Central.

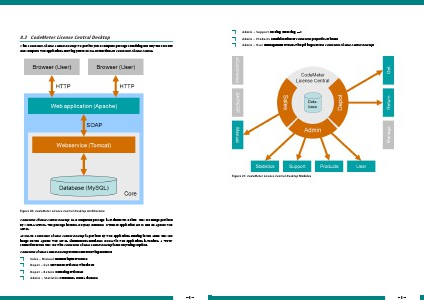

Figure 20: CodeMeter License Central Desktop Architecture
CodeMeter License Central Desktop, as a completed package, is available for a Linux VmWare Image provided
by WIBU-SYSTEMS. The package includes a MySQL database, a Tomcat application server and an Apache web
server.
Access to CodeMeter License Central Desktop is provided by web applications running in the same VmWare
image on the Apache web server. Simultaneous multi-user access via web applications is feasible. A TCP/IP
connection to the VmWare with CodeMeter License Central Desktop is the only thing required.
CodeMeter License Central Desktop features the following modules:
Sales – Manual (manual input of orders)
Depot – Get (download of license with ticket)
Depot – Return (returning of license)
Admin – Statistics (customers, orders, licenses)
