WAVENET 1.1 | Page 185

185

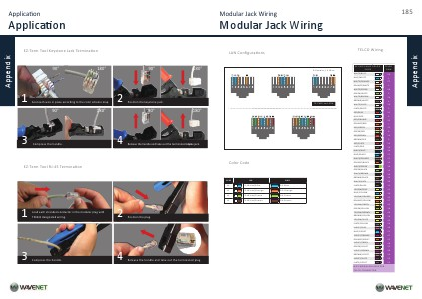

Modular Jack Wiring

Modular Jack Wiring

25 PAIR CABLE COLOR
CODE
WHITE/BLUE
BLUE/WHITE
WHITE/ORANGE
ORANGE/WHITE
WHITE/GREEN
GREEN/WHITE
WHITE/BROWN
BROWN/WHITE

TP-PMD and ATM

WHITE/SLATE
SLATE/WHITE
RED/BLUE
BLUE/RED
RED/ORANGE
ORANGE/RED
RED/GREEN
GREEN/RED
RED/BROWN
BROWN/RED
RED/SLATE
SLATE/RED
BLACK/BLUE
BLUE/BLACK
BLACK/ORANGE

Color Code

ORANGE/BLACK
BLACK/GREEN
GREEN/BLACK
BLACK/BROWN
BROWN/BLACK
BLACK/SLATE

T1-White/Blue

R1-Blue

SLATE/BLACK

T2-White/Orange

R2-Orange

YELLOW/BLUE

T3-White/Green

R3-Green

T4-White/Brown

R4-Brown

BLUE/YELLOW
YELLOW/ORANGE
ORANGE/YELLOW
YELLOW/GREEN
GREEN/YELLOW
YELLOW/BROWN
BROWN/YELLOW
YELLOW/SLATE
SLATE/YELLOW
VIOLET/BLUE
BLUE/VIOLET
VIOLET/ORANGE
ORANGE/VIOLET
VIOLET/GREEN
GREEN/VIOLET
VIOLET/BROWN
BROWN/VIOLET
VIOLET/SLATE
SLATE/VIOLET

# OF MODULAR JACKS PER
TELCO CONNECTOR

TELCO
PIN#
26
1
27
2
28
3
29
4
30
5
31
6
32
7
33
8
34
9
35
10
36
11
37
12
38
13
39
14
40
15
41
16
42
17
43
18
44
19
45
20
46
21
47
22
48
23
49
24
50
25

Appendix

TELCO Wiring
