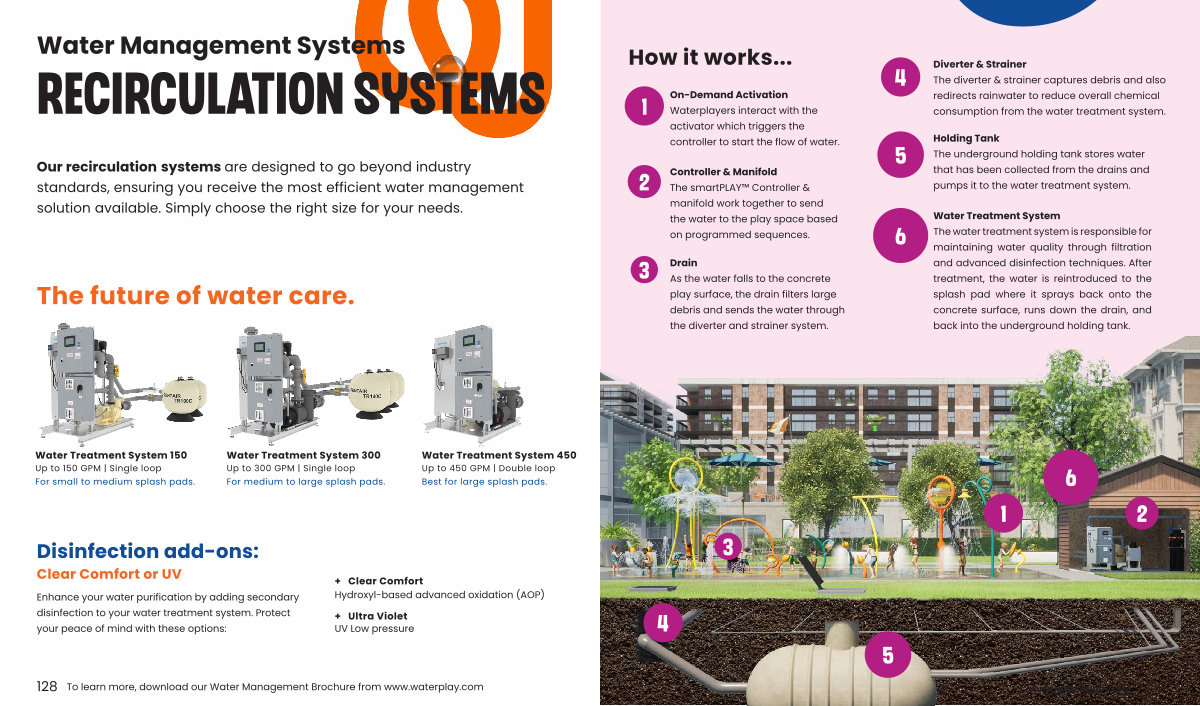

How it works...
1
2
3
On-Demand Activation Waterplayers interact with the activator which triggers the controller to start the flow of water.
Controller & Manifold The smartPLAY™ Controller & manifold work together to send the water to the play space based on programmed sequences.
Drain As the water falls to the concrete play surface, the drain filters large debris and sends the water through the diverter and strainer system.
4
5
6
Diverter & Strainer The diverter & strainer captures debris and also redirects rainwater to reduce overall chemical consumption from the water treatment system.
Holding Tank The underground holding tank stores water that has been collected from the drains and pumps it to the water treatment system.
Water Treatment System The water treatment system is responsible for maintaining water quality through filtration and advanced disinfection techniques. After treatment, the water is reintroduced to the splash pad where it sprays back onto the concrete surface, runs down the drain, and back into the underground holding tank.
3
1
6 2
4 5 www. waterplay. com
