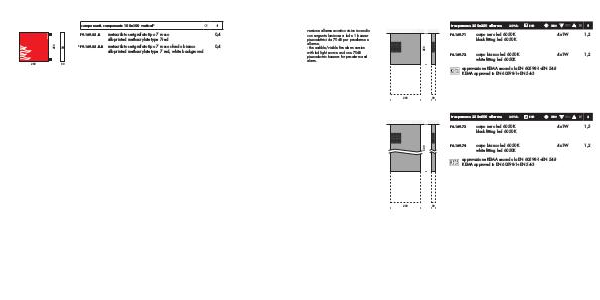

Viabizzuno by Cirrus Lighting - Architectural Lighting Range Trasparenze Emergency Signage by Cirrus Lighting | Page 57

trasparenze 250x250 allarme
24Vdc
ECG
IP20
F6.169.71 corpo nero led 6050K
black fitting led 6050K 4x1W 1,2
F6.169.72 corpo bianco led 6050K
white fitting led 6050K 4x1W 1,2
versione allarme acustico visivo incendio
con sorgente luminosa a led e 1 buzzer
piezoelettrici da 70 dB per preallarme e
allarme.
- the audible/visible fire alarm version
with led light source and one 70dB
piezoelectric buzzers for pre-alarm and
alarm.
approvazione KEMA secondo la EN 60598-1+EN 54-3
KEMA approved to EN 60598-1+EN 54-3
250
30
trasparenze 250x500 allarme
24Vdc
ECG
IP20
F6.169.73 corpo nero led 6050K
black fitting led 6050K 4x1W 1,5
F6.169.74 corpo bianco led 6050K
white fitting led 6050K 4x1W 1,2
approvazione KEMA secondo la EN 60598-1+EN 54-3
KEMA approved to EN 60598-1+EN 54-3
250
30
