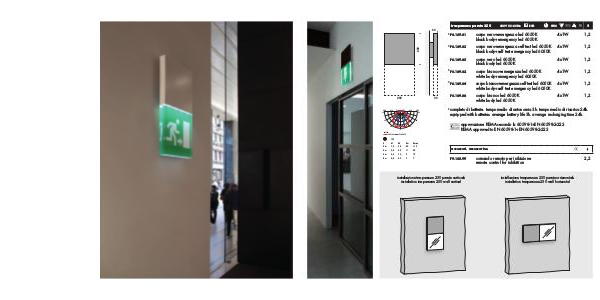

trasparenze parete 250
240V 50-60Hz
ECG
IP40
60
* F6.169.61 corpo nero+emergenza led 6050K
black body+emergency led 6050K 4x1W 1,2
* F6.169.63 corpo nero+emergenza self test led 6050K
black body+self test emergency led 6050K 4x1W 1,2
corpo nero led 6050K
black body led 6050K 4x1W 1,2
* F6.169.62 corpo bianco+emergenza led 6050K
white body+emergency led 6050K 4x1W 1,2
* F6.169.64 corpo bianco+emergenza self test led 6050K
white body+self test emergency led 6050K 4x1W 1,2
corpo bianco led 6050K
white body led 6050K 4x1W 1,2
F6.169.65
250
350
90°
210
70
0
30
210
70
350
90°
F6.169.66
* completo
di batterie. tempo medio di autonomia 3h. tempo medio di ricarica 24h.
equipped with batteries. average battery life 3h. average recharging time 24h.
60°
60°
approvazione KEMA secondo la 60598-1+EN 60598-2-222
KEMA approved to EN 60598-1+EN 60598-2-222
30°
30°
0°
cd/klm
C0-C180
C90-C270
1W
h d1 d2 Em Emax
2m 1,2 3,3 43 112
4m 2,4 6,7 11 28
6m 3,6 10, 5 12
8m 4,8 40 3 7
accessori. accessories.
F9.168.99
installazione trasparenze 250 parete verticale
installation trasparenze 250 wall vertical
comando remoto per inibizione
remote control for inhibition
installazione trasparenze 250 parete orrizzontale
installation trasparenze 250 wall horizontal
2,2
