CRYOGENIC VALVES
Recent advances include springloaded seat systems that compensate for contraction and maintain contact pressure at – 196 ° C( Peng et al., 2021; Ivancu & Popescu, 2023). For hydrogen and CO2 applications, where leakage tolerances are stricter, elastic recovery seals and lip-seal configurations have shown superior performance( RAYS, 2023; Landee, 2025). Testing under BS 6364 protocols confirms that properly engineered cryogenic seats can maintain zero-leakage performance across thousands of thermal cycles( Velázquez et al., 2022). Comparative fire-safe tests show that metal-to-metal seats can sustain shutoff even after exposure to fire, while PTFE / PEEK designs may degrade above 350 ° C( Peng et al., 2021). Seat designs also strongly influence torque requirements. Metal-seated cryogenic valves typically require 30 – 50 % higher actuation torque than soft-seated designs, driving the need for more robust actuators( Morgan, 2021). For LNG regasification plants where valves cycle frequently, hybrid seats provide a balance of tight shutoff and manageable torque.
Stem integrity and packing systems under thermal contraction
The stem assembly is another critical failure point in cryogenic ball valves. Under rapid cooling, differential contraction between stem, gland, and body can cause leakage, misalignment or packing degradation( Borregales et al., 2014; Jaimes-Parilli et al., 2014). To mitigate this, cryogenic designs rely on live-loaded stem packings using materials such as graphite, PTFE blends, or lowemission packing per ISO 15848( Peng et al., 2021; Xie & Li, 2023). Anti-blowout stem designs, mandated by API 6D, add a second level of security. Extended stem guides and low-friction coatings reduce operational torque at cryogenic conditions( Emerson, 2017; Morgan, 2021). For example, cryogenic torque reduction coatings have cut stem friction coefficients by up to 40 %, lowering actuator size requirements. In hydrogen service, double-sealing stem systems with purge connections are emerging as best practice( Habonim, 2022; Mills & Langner, 2023). These systems allow active venting of permeated hydrogen, preventing accumulation that could otherwise lead to explosive atmospheres. Reliability analysis shows that stem leakage remains one of the leading causes of cryogenic valve failures, accounting for

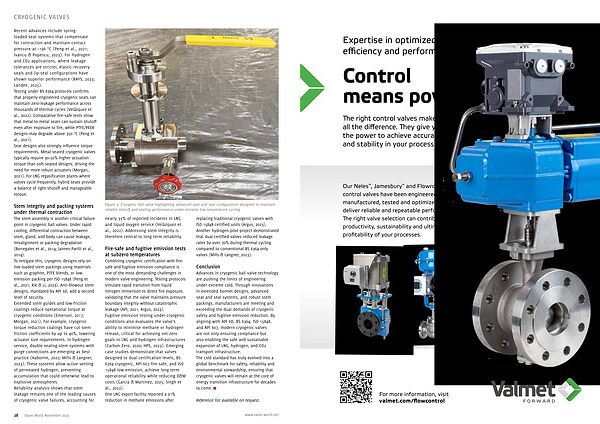

Figure 3. Cryogenic ball valve highlighting advanced seat and seal configuration designed to maintain reliable shutoff and sealing performance under extreme low-temperature cycling
nearly 35 % of reported incidents in LNG and liquid oxygen service( Velázquez et al., 2022). Addressing stem integrity is therefore central to long-term reliability.
Fire-safe and fugitive emission tests at subzero temperatures
Combining cryogenic certification with firesafe and fugitive emission compliance is one of the most demanding challenges in modern valve engineering. Testing protocols simulate rapid transition from liquid nitrogen immersion to direct fire exposure, validating that the valve maintains pressure boundary integrity without catastrophic leakage( API, 2021; Argus, 2023). Fugitive emission testing under cryogenic conditions also evaluates the valve’ s ability to minimise methane or hydrogen release, critical for achieving net-zero goals in LNG and hydrogen infrastructures( Carbon-Zero, 2020; HPS, 2023). Emerging case studies demonstrate that valves designed to dual-certification levels, BS 6364 cryogenic, API 607 fire-safe, and ISO 15848 low-emission, achieve long-term operational reliability while reducing O & M costs( Garcia & Martinez, 2025; Singh et al., 2022). One LNG export facility reported a 91 % reduction in methane emissions after replacing traditional cryogenic valves with ISO 15848-certified units( Argus, 2023). Another hydrogen pilot project demonstrated that dual-certified valves reduced leakage rates by over 70 % during thermal cycling compared to conventional BS 6364-only valves( Mills & Langner, 2023).
Conclusion
Advances in cryogenic ball valve technology are pushing the limits of engineering under extreme cold. Through innovations in extended bonnet designs, advanced seat and seal systems, and robust stem packings, manufacturers are meeting and exceeding the dual demands of cryogenic safety and fugitive emission reduction. By aligning with API 6D, BS 6364, ISO 15848, and API 607, modern cryogenic valves are not only ensuring compliance but also enabling the safe and sustainable expansion of LNG, hydrogen, and CO2 transport infrastructure. The cold standard has truly evolved into a global benchmark for safety, reliability and environmental stewardship, ensuring that cryogenic valves will remain at the core of energy transition infrastructure for decades to come.
Reference list available on request.
