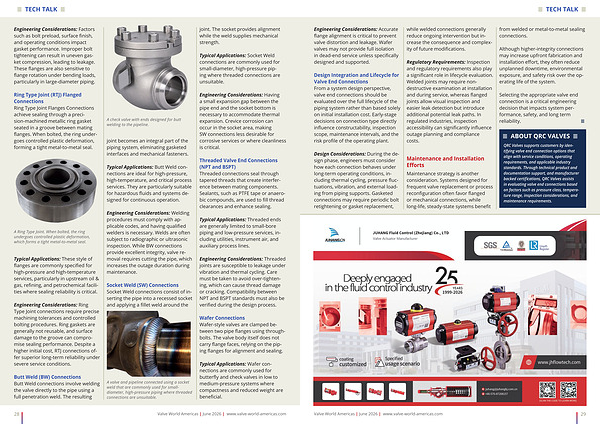

• TECH TALK •
Engineering Considerations: Factors such as bolt preload, surface finish, and operating conditions impact gasket performance. Improper bolt tightening can result in uneven gasket compression, leading to leakage. These flanges are also sensitive to flange rotation under bending loads, particularly in large-diameter piping.
Ring Type Joint( RTJ) Flanged Connections Ring Type Joint Flanges Connections achieve sealing through a precision-machined metallic ring gasket seated in a groove between mating flanges. When bolted, the ring undergoes controlled plastic deformation, forming a tight metal-to-metal seal.
A Ring Type Joint. When bolted, the ring undergoes controlled plastic deformation, which forms a tight metal-to-metal seal.
Typical Applications: These style of flanges are commonly specified for high-pressure and high-temperature services, particularly in upstream oil & gas, refining, and petrochemical facilities where sealing reliability is critical.
Engineering Considerations: Ring Type Joint connections require precise machining tolerances and controlled bolting procedures. Ring gaskets are generally not reusable, and surface damage to the groove can compromise sealing performance. Despite a higher initial cost, RTJ connections offer superior long-term reliability under severe service conditions.
Butt Weld( BW) Connections Butt Weld connections involve welding the valve directly to the pipe using a full penetration weld. The resulting
A check valve with ends designed for butt welding to the pipeline.
joint becomes an integral part of the piping system, eliminating gasketed interfaces and mechanical fasteners.
Typical Applications: Butt Weld connections are ideal for high-pressure, high-temperature, and critical process services. They are particularly suitable for hazardous fluids and systems designed for continuous operation.
Engineering Considerations: Welding procedures must comply with applicable codes, and having qualified welders is necessary. Welds are often subject to radiographic or ultrasonic inspection. While BW connections provide excellent integrity, valve removal requires cutting the pipe, which increases the outage duration during maintenance.
Socket Weld( SW) Connections Socket Weld connections consist of inserting the pipe into a recessed socket and applying a fillet weld around the
A valve and pipeline connected using a socket weld that are commonly used for smalldiameter, high-pressure piping where threaded connections are unsuitable. joint. The socket provides alignment while the weld supplies mechanical strength.
Typical Applications: Socket Weld connections are commonly used for small-diameter, high-pressure piping where threaded connections are unsuitable.
Engineering Considerations: Having a small expansion gap between the pipe end and the socket bottom is necessary to accommodate thermal expansion. Crevice corrosion can occur in the socket area, making SW connections less desirable for corrosive services or where cleanliness is critical.
Threaded Valve End Connections( NPT and BSPT) Threaded connections seal through tapered threads that create interference between mating components. Sealants, such as PTFE tape or anaerobic compounds, are used to fill thread clearances and enhance sealing.
Typical Applications: Threaded ends are generally limited to small-bore piping and low-pressure services, including utilities, instrument air, and auxiliary process lines.
Engineering Considerations: Threaded joints are susceptible to leakage under vibration and thermal cycling. Care must be taken to avoid over-tightening, which can cause thread damage or cracking. Compatibility between NPT and BSPT standards must also be verified during the design process.
Wafer Connections Wafer-style valves are clamped between two pipe flanges using throughbolts. The valve body itself does not carry flange faces, relying on the piping flanges for alignment and sealing.
Typical Applications: Wafer connections are commonly used for butterfly and check valves in low to medium-pressure systems where compactness and reduced weight are beneficial.
28 Valve World Americas | June 2026 | www. valve-world-americas. com
