Our normal corrugation (11/3”) is a sinusoidal profile with 11 corrugations and a pitch
of 3 inches (76.2mm).With the new brand name Classicor, this is the oldest and
most common of all profiles; mainly used for roofing and side walls especially in domestic application.
Uganda Baati manufactures this profile in Galvanized Steel, Aluminum-Zinc coated
steel & Pre-Painted Al-Zn Steel (Classicor). Classicor can be factory cranked into
curves of minimum 400mm radius to enhance its use and aesthetic properties.
PROFILE
CLASSICOR
In feed strip width
Pitch - mm
No. of troughs
Cover width - mm
Coverage - %
Recommended Material
Available Thickness
975
76.2 ±0.5
11
800.1±5.5
81.2
AZ, CC
mm 0.25 - 0.50
Yield strength
FH Y.S 550 MPa
Soft Y.S 250- 300 MPa
Length
Standard length = 3 mtr
Special length available on request

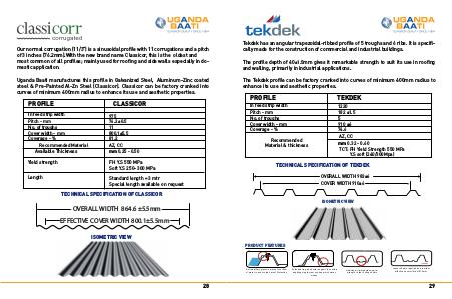

TECHNICAL SPECIFICATION OF CLASSICOR
OVERALL WIDTH 864.6 ±5.5mm
EFFECTIVE COVER WIDTH 800.1±5.5mm
ISOMETRIC VIEW
