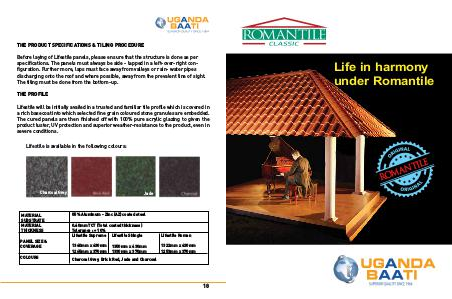

THE PRODUCT SPECIFICATIONS & TILING PROCEDURE
Before laying of Lifestile panels, please ensure that the structure is done as per
specifications. The panels must always be side - lapped in a left-over-right configuration. Further more, laps must face away from valleys or rain- water pipes
discharging onto the roof and where possible, away from the prevalent line of sight.
The tiling must be done from the bottom-up.
THE PROFILE
Lifestile will be initially availed in a trusted and familiar tile profile which is covered in
a rich basecoat into which selected fine grain coloured stone granules are embedded.
The cured panels are then finished off with 100% pure acrylic glazing to given the
product luster, UV protection and superior weather-resistance to the product, even in
severe conditions.
Lifestile is available in the following colours:
Charcoal Grey
MATERIAL
SUBSTRATE
MATERIAL
THICKNESS
PANEL SIZE &
COVERAGE
COLOURS
Jade
55% Aluminum - Zinc (AZ) coated steel
0.40mm TCT (Total coated thickness)
Tolerance : + 10%
Lifestile Supreme Lifestile Shingle
Lifestile Roman
1340mm x 430mm
1265mm x 370mm
1322mm x 430mm
1253mm x 370mm
1350mm x 430mm
1330mm x 370mm
Charcoal Grey, Brick Red, Jade and Charcoal
18
