VOLUME DEVELOPMENT
section 2
sec. 8
sec. 7
section 1
sec. 4
sec. 3
sec. 6
sec. 5

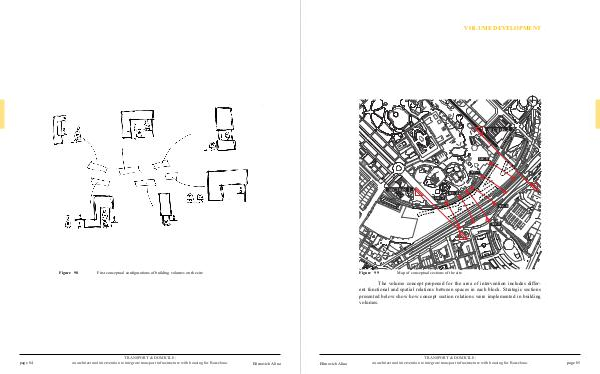

Figure 99
Map of conceptual sections of the site
The volume concept proposed for the area of intervention includes differ-
ent functional and spatial relations between spaces in each block. Strategic sections
presented below show how concept section relations were implemented in building
volumes.
Efimovich Alina
TRANSPORT & DOMICILE:
an architectural intervention to integrate transport infrastructure with housing for Barcelona.
page 85
