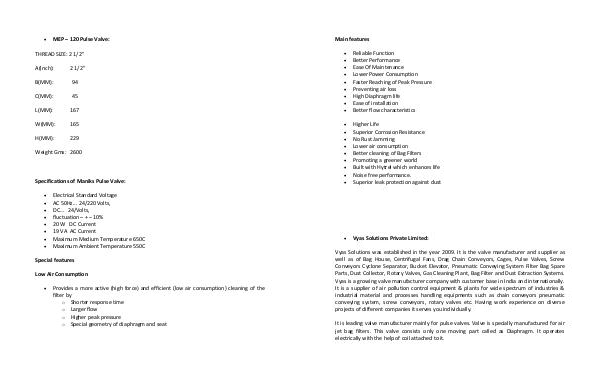

MEP – 120 Pulse Valve:
THREAD SIZE: 2 1/2"
A(Inch):
2 1/2”
B(MM): 94
C(MM): 45
L(MM): 167
W(MM): 165
H(MM): 229
Weight Gms: 2600
Specifications of Maniks Pulse Valve:








Electrical Standard Voltage
AC 50Hz... 24/220 Volts,
DC… 24/Volts,
fluctuation – + – 10%
20 W DC Current
19 VA AC Current
Maximum Medium Temperature 650C
Maximum Ambient Temperature 550C
Special features
Low Air Consumption

Provides a more active (high force) and efficient (low air consumption) cleaning of the
filter by
o Shorter response time
o Larger flow
o Higher peak pressure
o Special geometry of diaphragm and seat
